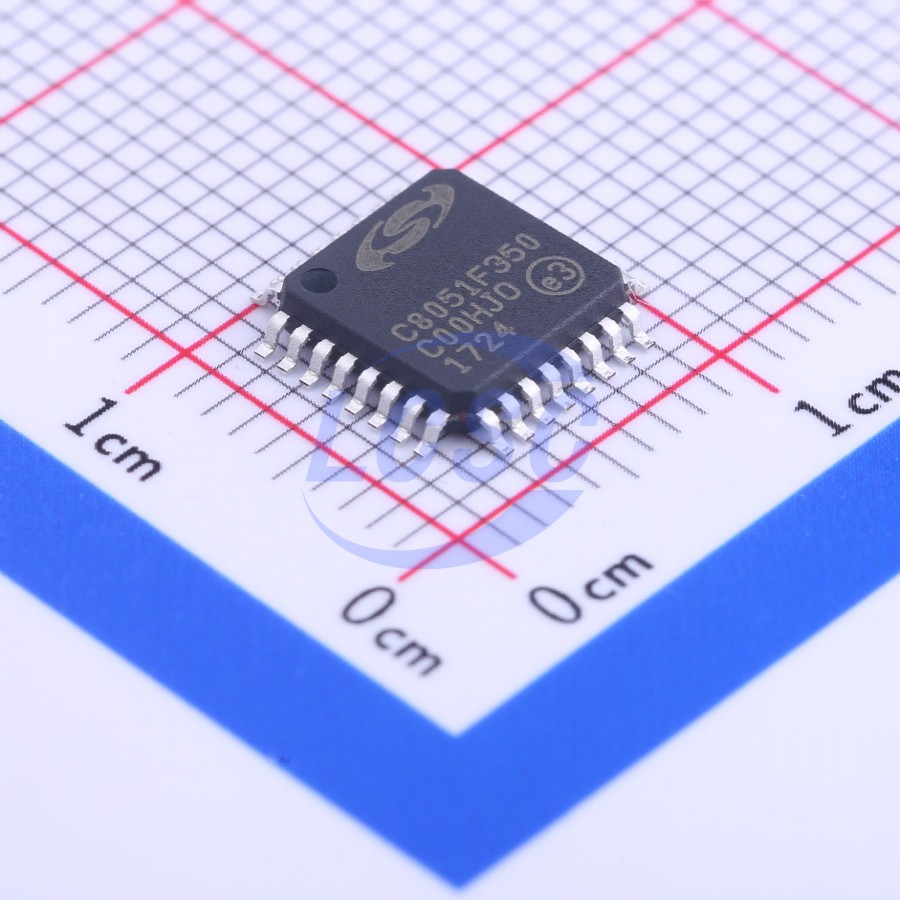

C8051F350-GQR

Key features

• No missing codes
• 0.0015% nonlinearity
• Programmable conversion rates up to 1 ksps
• 8-Input multiplexer
• 1x to 128x PGA
• Built-in temperature sensor
• Programmable hysteresis and response time
• Configurable as interrupt or reset source
• Low current (0.4 μA)
• On-chip debug circuitry facilitates full speed, nonintrusive in-system debug (No emulator required)
• Provides breakpoints, single stepping, inspect/modify memory and registers
• Superior performance to emulation systems using ICE-Chips, target pods, and sockets
• Low Cost, Complete Development Kit
• Pipelined Instruction architecture; executes 70% of instructions in 1 or 2 system clocks
• Up to 50 MIPS throughput
• Expanded interrupt handler
• 17 Port I/O; All 5 V tolerant with high sink current
• Enhanced UART, SMBus, and SPI Serial Ports
• Four general purpose 16-bit counter/timers
• 16-bit programmable counter array (PCA) with three capture/compare modules
• Real time clock mode using PCA or timer and external clock source
• Internal Oscillator: 24.5 MHz with ± 2% accuracy, supports UART operation
• External Oscillator: Crystal, RC, C, or clock (1 or 2 pin modes)
• Clock multiplier to achieve 50 MHz internal clock
• Can switch between clock sources on-the-fly
