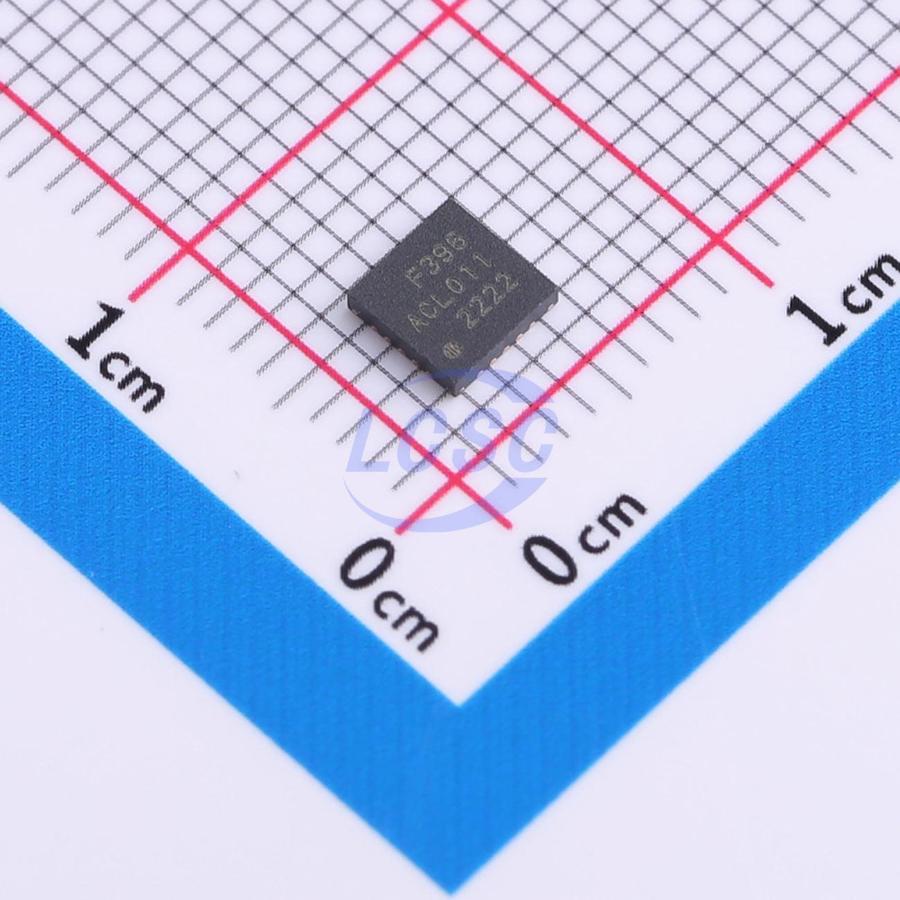

C8051F396-A-GMR

Key features

• Programmable throughput up to 500 ksps
• Up to 16 external inputs, programmable as single-ended or differential
• Reference from on-chip voltage reference, VDD or external VREF pin
• Internal or external start of conversion sources
• Supports output through resets for continuous operation
• Programmable hysteresis and response time
• Configurable as interrupt or reset source
• Accurate to ±2 ℃ across temperature range with no user calibration
• On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
• Provides breakpoints, single stepping, inspect/modify memory and registers
• 160 μA/MHz Active mode with 49 MHz internal precision oscillator
• 200 nA Stop mode current
• Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
• Up to 50 MIPS throughput with 50 MHz clock
• Expanded interrupt handler
• Up to 1 kB internal data RAM (256 + 768)
• Up to 16 kB Flash; In-system programmable in 512-byte Sectors
• 512 bytes of byte-programmable EEPROM; 1 million write/erase cycles (‘F37x)
• 21 or 17 Port I/O
• UART, 2 SMBus (I²C compatible), and SPI serial ports
• Six general purpose 16-bit counter/timers
• 16-Bit programmable counter array (PCA) with three capture/compare modules and PWM functionality
• 49 MHz ±2% precision internal oscillator
• Supports crystal-less UART operation
• Low-power suspend mode with fast wake time
• 80 kHz low-frequency, low-power oscillator
• External oscillator: Crystal, RC, C, or CMOS clock
• Can switch between clock sources on-the-fly; useful in power saving modes
• Built-in voltage supply monitor
