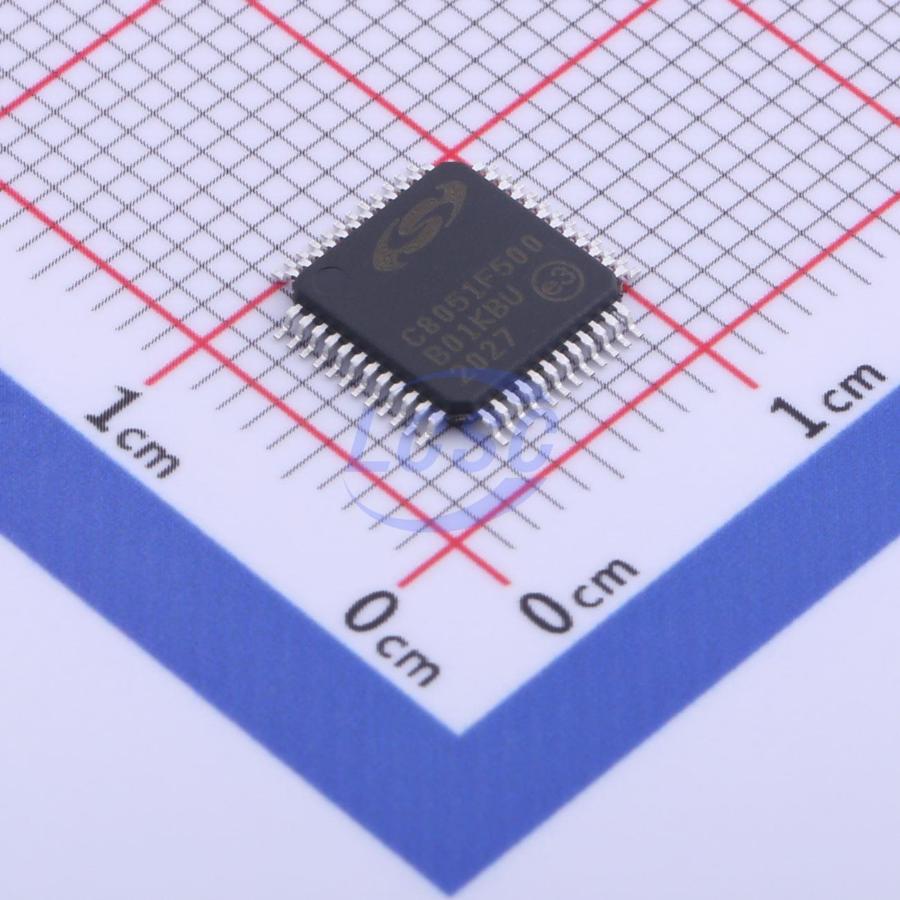

C8051F500-IQR

Key features

• Up to 200 ksps
• Up to 32 external single-ended inputs
• VREF from on-chip VREF, external pin or VDD
• Internal or external start of conversion source
• Built-in temperature sensor
• Programmable hysteresis and response time
• Configurable as interrupt or reset source
• Low current
• On-chip debug circuitry facilitates full speed, nonintrusive in-system debug (no emulator required)
• Provides breakpoints, single stepping, inspect/modify memory and registers
• Superior performance to emulation systems using ICE-chips, target pods, and sockets
• Low cost, complete development kit
• Supply Voltage 1.8 to 5.25 V
• Typical operating current: 19 mA at 50 MHz; Typical stop mode current: 2 μA
• Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
• Up to 50 MIPS throughput with 50 MHz clock
• Expanded interrupt handler
• 4352 bytes internal data RAM (256 + 4096 XRAM)
• 64 or 32 kB Flash; In-system programmable in 512-byte Sectors
• 40, 33, or 25 Port I/O; All 5 V tolerant
• CAN 2.0 Controller—no crystal required
• LIN 2.1 Controller (Master and Slave capable); no crystal required
• Hardware enhanced UART, SMBus, and enhanced SPI serial ports
• Four general purpose 16-bit counter/timers
• 16-Bit programmable counter array (PCA) with six capture/compare modules and enhanced PWM functionality
• Internal 24 MHz with ±0.5% accuracy for CAN and master LIN operation
• External oscillator: Crystal, RC, C, or clock (1 or 2 pin modes)
• Can switch between clock sources on-the-fly; useful in power saving modes
• Temperature Range: -40 to +125 °C
• Compliant to AEC-Q100
