chipfountain

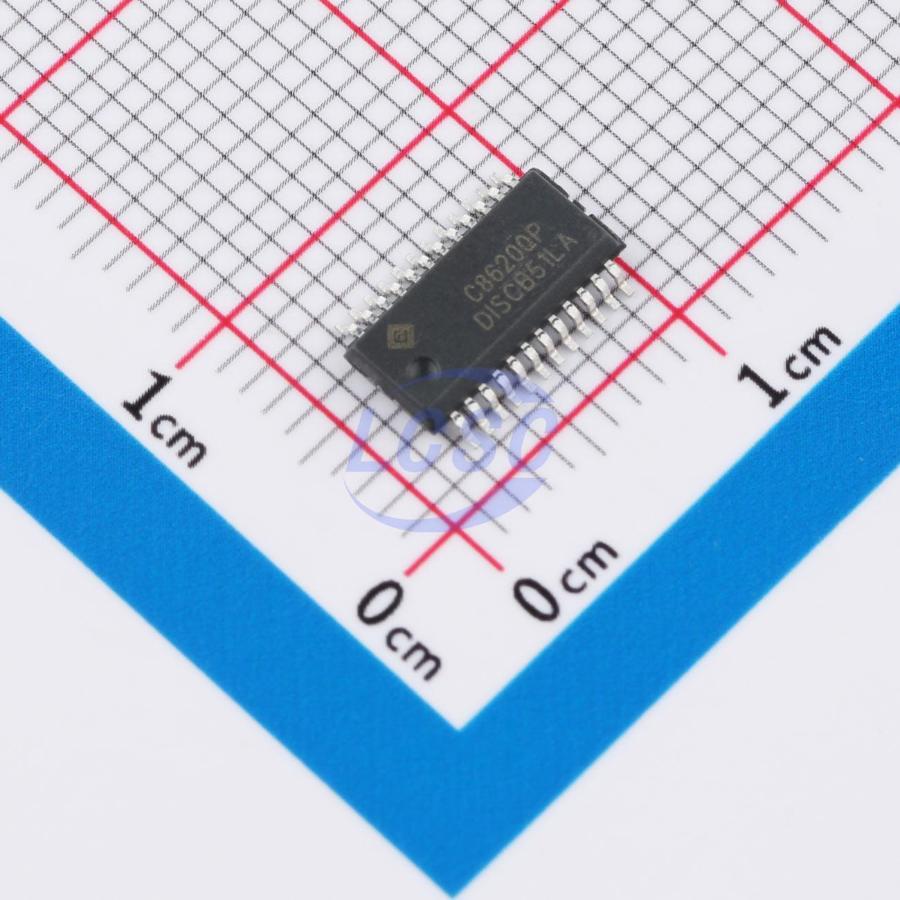

C8620QP

8 DC-DC 30mA 2.9V~5.5V QSOP-24 LED Drivers ICs

QSOP-24RoHSActive

Manufacturer: chipfountain
Manufacturer part #: C8620QP
Store part #: C51912240
Package / case: QSOP-24
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,134 in stock

#C51912240

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹32.80	₹32.80
10+	₹28.55	₹285.50
30+	₹26.72	₹801.60
100+	₹24.46	₹2,446.00
500+	₹23.44	₹11,720.00
1,000+	₹22.85	₹22,850.00

Quantity (min 1)

1 × ₹32.80

₹32.80

excl. GST

₹38.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

C8620QP

₹32.80 for 1 + GST

Specifications

Operating temperature: -40℃~+85℃
Number of Channels: 8
Type: DC-DC
Output Current: 30mA
Voltage - Input(DC): 2.9V~5.5V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The C8620 is an 8×8 dot matrix constant-current LED driver IC. Each LED supports 8-bit PWM constant-current dimming with 256-level linear grayscale adjustment. The IC integrates a microcontroller digital interface, data latches, and PWM constant-current driver circuitry, controlled by a host IC via an I²C-compatible communication protocol. Operating voltage ranges from 2.9V to 5.5V with extremely high current utilization efficiency, supporting normal operation across an ambient temperature range of -40℃ to 85℃. Available in QSOP24, SOP20, and QFN20 packages, with a storage temperature range of -65℃ to 150℃.
