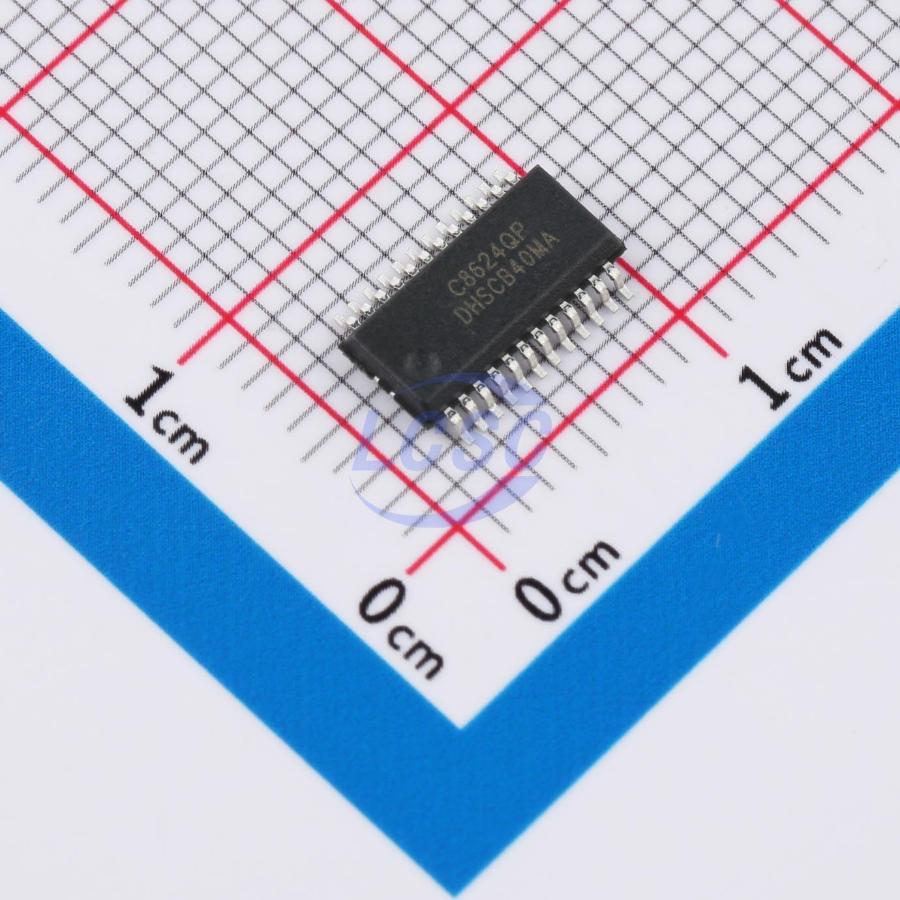

C8624QP

C8624 is an LED matrix driver IC supporting up to 8×11 LEDs. Each LED can be independently controlled with 8-bit PWM data and 256-level linear PWM dimming. The IC features a built-in 64-level global current adjustment function. It supports 1-bit address decoding, allowing up to 2 ICs to be connected in parallel on a single data bus, significantly reducing MCU performance requirements. The operating voltage range is 2.9V~5.5V with ultra-low operating current, down to 250μA in sleep mode. The IC is available in QSOP24 or QFN24 packages, with an operating temperature range of -40℃~85℃.

Applications

• LED displays for mobile phones and other handheld devices
• Keyboards or mice
• White goods
• Smart speakers

Key features

• Operating voltage range: 2.9V~5.5V
• 8×11 dot matrix: 88 LEDs total
• 256-level PWM with individual pixel control
• 64-level global current gain adjustment
• SPI-like interface, up to 20MHz
• Built-in ghosting cancellation
• Constant current output range: 6~30mA @VDD=5V
• Data verification support
