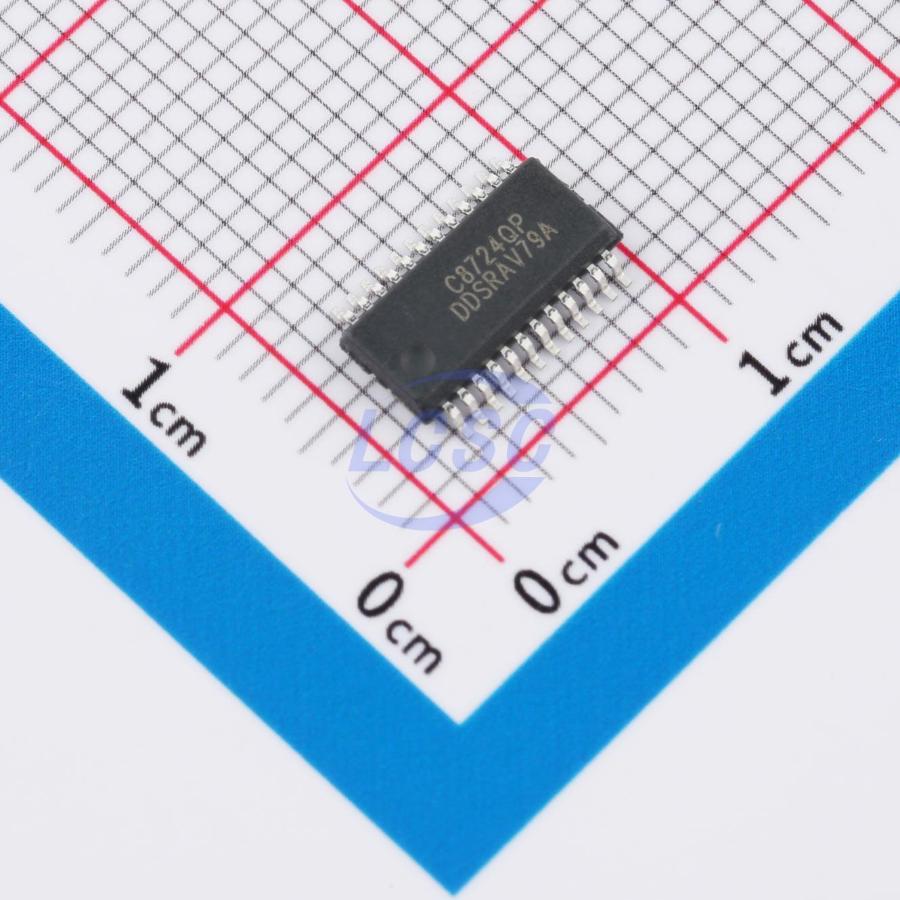

C8724QP

The C8724 is a driver IC supporting up to an 8×12 LED matrix. Each LED can be independently controlled with 8-bit PWM data and 256-level linear PWM dimming. The IC features a built-in 64-level global current adjustment function. It supports 2-bit address decoding configuration, allowing up to 4 ICs to be connected in parallel on a single data bus, significantly reducing the performance requirements on the MCU. The operating voltage range is 2.9V ~ 5.5V with ultra-low operating current, down to 250μA in sleep mode. The IC is available in QSOP24 or QFN24 packages, with an operating temperature range of -40℃ ~ 85℃.

Applications

• LED displays for mobile phones and other handheld devices
• Keyboards or mice
• White goods
• Smart speakers

Key features

• Operating voltage range: 2.9V ~ 5.5V
• Supports 8×12 dot matrix, capable of driving 96 monochrome LEDs or 32 RGB LEDs
• 256-level PWM independent control per LED
• 64-level global current gain adjustment
• SPI-like interface, maximum communication rate up to 20MHz
• Built-in ghost cancellation
• Constant current output range: 5 ~ 40mA at VDD=5V
• Data verification support
