Corebai MicroelectronicsDatasheet (PDF)

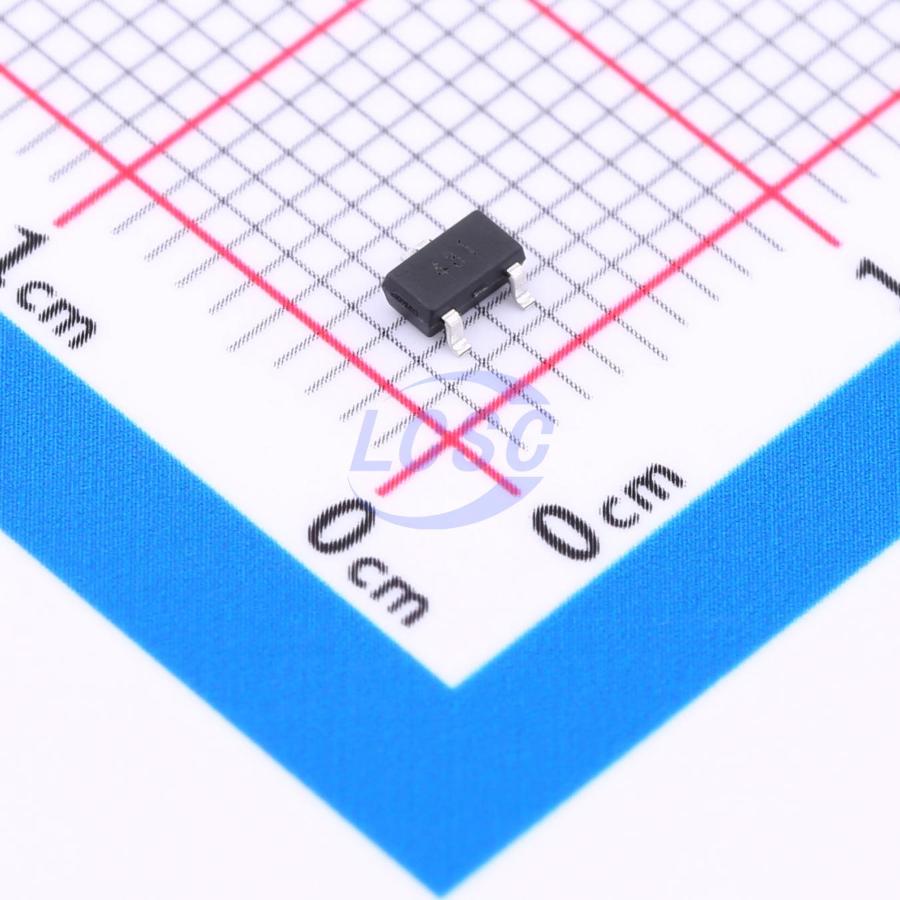

CBM431Z23
Voltage Reference IC Adjustable 2.5V~40V ±2% 100mA SOT-23-3
SOT-23-3RoHSActive
Three-terminal adjustable regulator
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM431Z23
- Store part #
- C5364343
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C5364343
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.04 | ₹70.20 |
| 50+ | ₹11.15 | ₹557.50 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.63 | ₹4,315.00 |
| 3,000+ | ₹7.77 | ₹23,310.00 |
| 6,000+ | ₹7.33 | ₹43,980.00 |
5 × ₹14.04
₹70.20
excl. GST
₹82.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CBM431Z23
₹70.20 for 5 + GST
Specifications
- Output Voltage
- 2.5V~40V
- Quiescent Current
- 1.8uA
- Tolerance
- ±2%
- Minimum Cathode Current for Regulation
- 250uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
CBM431Z is a series of three-terminal adjustable regulators that ensures thermal stability across the applicable temperature range. The output voltage can be set to any value between the reference voltage established by two external resistors (Vref, approximately 2.5V) and 40V. These devices feature a typical dynamic output impedance of 0.2Ω. The precision output circuitry provides particularly sharp switching characteristics, making these devices an excellent replacement for Zener diodes in many applications. The CBM431Z operates over a temperature range of -40°C to +125°C.
Applications
- Reference voltage source for circuits requiring a reference voltage where no standard reference is available
- Feedback control for driving optocouplers in power supplies, voltage monitors, constant current sources, constant sink current circuits, and series shunt regulators
Key features
- Programmable output voltage up to 40V
- Low dynamic output impedance down to 0.2Ω
- Sink current capability from 0.1 mA to 100 mA
- 50 ppm/°C temperature coefficient, full-range equivalent
- Operating temperature compensation over full rated operating temperature range
- Low output noise voltage
- Fast turn-on response
- TO-92, SOT-89, SOT-23 packages
