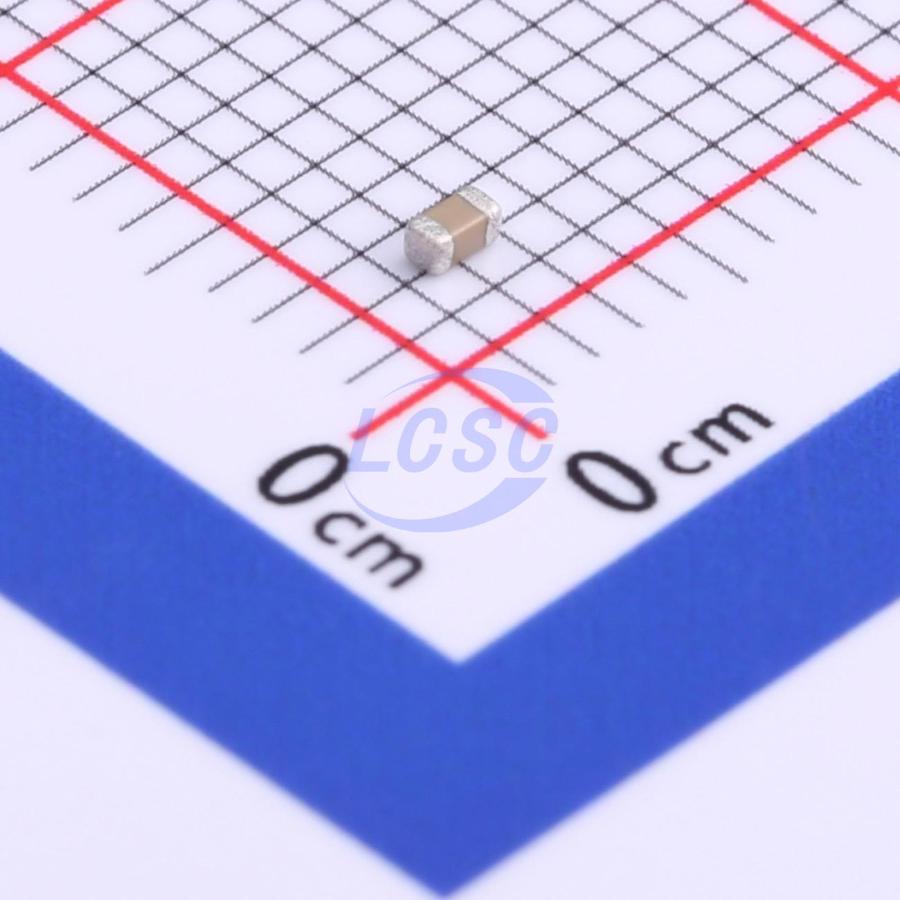

CC0603KRX7R9BB103
10nF ±10% 50V Ceramic Capacitor X7R 0603
CAP CER 10nF 50V X7R 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- CC0603KRX7R9BB103
- Store part #
- C100042
- Package / case
- 0603
- Category
- Ceramic Capacitors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,00,400 in stock
#C100042
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.726 | ₹36.30 |
| 500+ | ₹0.473 | ₹236.50 |
| 1,500+ | ₹0.363 | ₹544.50 |
| 4,000+ | ₹0.275 | ₹1,100.00 |
| 24,000+ | ₹0.242 | ₹5,808.00 |
| 48,000+ | ₹0.220 | ₹10,560.00 |
50 × ₹0.726
₹36.30
excl. GST
₹42.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CC0603KRX7R9BB103
₹36.30 for 50 + GST
Specifications
- Capacitance
- 10nF
- Temperature Coefficient
- X7R
- Tolerance
- ±10%
- Voltage Rating
- 50V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.039 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 06035C103KAT2A#C128913Kyocera AVX · 0603 | Kyocera AVX | 0603 | 3,880 | ₹2.19 · 3,880 in stock | View |
 | C0603C103K5RAC7867#C141077KEMET · 0603 | KEMET | 0603 | 50 | ₹1.29 · 50 in stock | View |
 | C0603C103K5RACAUTO#C141078KEMET · 0603 | KEMET | 0603 | 23,180 | ₹3.27 · 23,180 in stock | View |
 | CL10B103KB8NNNC#C1589Samsung Electro-Mechanics · 0603 | Samsung Electro-Mechanics | 0603 | 16,96,650 | ₹1.07 · 16,96,650 in stock | View |
 | CEU3E2X7R1H103KT0Y0S#C165826TDK · 0603 | TDK | 0603 | 930 | ₹4.69 · 930 in stock | View |
Questions about CC0603KRX7R9BB103
What are the key electrical specifications and physical dimensions of the YAGEO CC0603KRX7R9BB103 capacitor?
The YAGEO CC0603KRX7R9BB103 is a multilayer ceramic capacitor (MLCC) with a capacitance of 10nF (0.01µF), a ±10% capacitance tolerance, an X7R Class II dielectric, and a 50V DC rated voltage. It is supplied in a 0603 (1608 metric) surface-mount package with nominal dimensions of 1.6mm × 0.8mm × 0.8mm. The capacitor is specified for operation over a temperature range of -55°C to +125°C, making it suitable for general-purpose electronic applications.
Where is the CC0603KRX7R9BB103 commonly used in electronic circuits?
The CC0603KRX7R9BB103 is a 10nF, ±10%, 50V multilayer ceramic capacitor with an X7R dielectric supplied in a 0603 (1608 metric) surface-mount package. It is part of YAGEO's Surface-Mount Ceramic Multilayer Capacitors – General Purpose & High Capacitance, Class 2, X7R product series. The datasheet lists example application areas including PCs, hard disks, game PCs, DVDs, video cameras, mobile phones, and data processing equipment.
How do temperature and operating conditions affect the performance of the CC0603KRX7R9BB103?
The CC0603KRX7R9BB103 uses an X7R Class II ceramic dielectric and is specified for operation over a temperature range of -55°C to +125°C with a maximum capacitance change of ±15% across this range. For this 10nF, 50V, 0603 variant, the datasheet specifies a maximum dissipation factor of 2.5% and an insulation resistance of at least 10GΩ or Rins × C ≥ 500 Ω·F, whichever is less.
Which soldering methods are recommended for the CC0603KRX7R9BB103?
The CC0603KRX7R9BB103 features lead-free NiSn terminations and is intended for surface-mount assembly. According to the datasheet, this 0603, 10nF capacitor is suitable for reflow soldering and may also be used with wave soldering under the specified conditions for this capacitance range. The component is supplied in tape-and-reel packaging for automated assembly.
What product features does the CC0603KRX7R9BB103 provide?
The CC0603KRX7R9BB103 features a 10nF capacitance, 50V rated voltage, X7R dielectric, and a 0603 (1608 metric) surface-mount package. It is RoHS compliant, halogen-free, uses lead-free NiSn terminations, and is supplied in tape-and-reel packaging.
