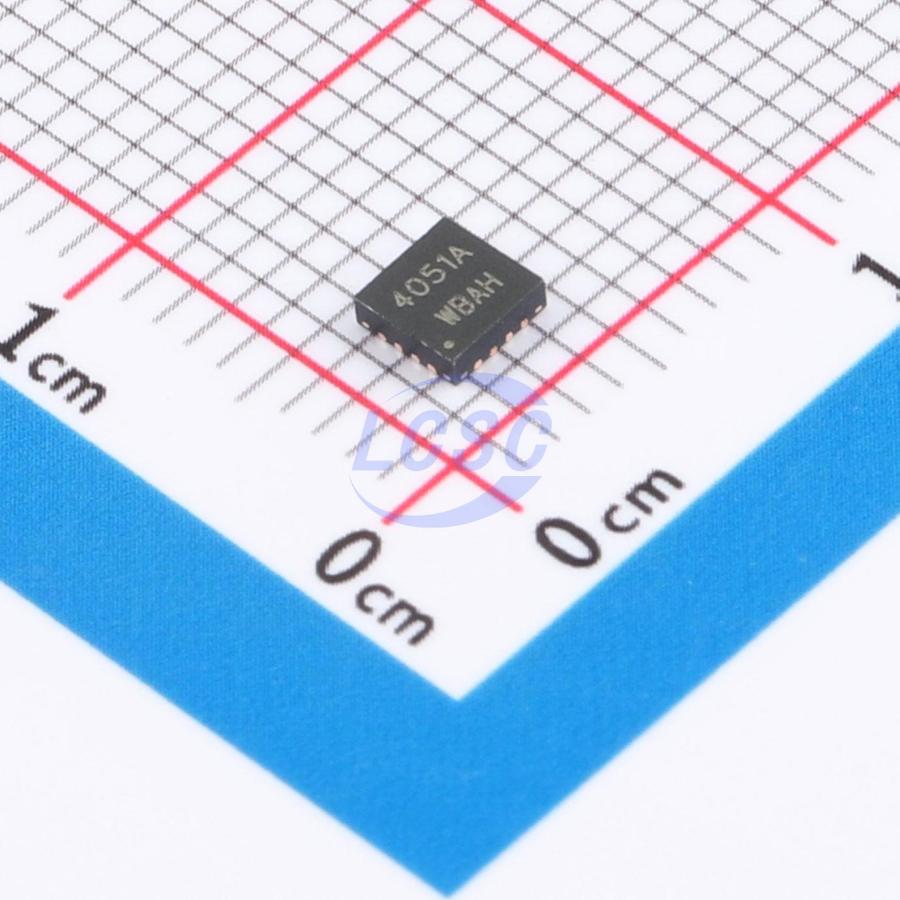

HGSEMI

CD4051ALQ/TR

3V~15V 240Ω@15V 1 QFN-16(3x3) Analog Switches, Multiplexers, Demultiplexers

QFN-16(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: CD4051ALQ/TR
Store part #: C52121509
Package / case: QFN-16(3x3)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,215 in stock

#C52121509

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.05	₹90.25
50+	₹14.33	₹716.50
150+	₹12.46	₹1,869.00
500+	₹11.07	₹5,535.00
2,500+	₹9.96	₹24,900.00
5,000+	₹9.41	₹47,050.00

Quantity (min 5, multiples of 5)

5 × ₹18.05

₹90.25

excl. GST

₹106.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CD4051ALQ/TR

₹90.25 for 5 + GST

Specifications

Features: Bidirectional analog channel;Level shifting
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~15V
Ron: 240Ω@15V
Number of Channels: 1
Propagation Delay: 25ns
Con: 0.2pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.177 g

Overview

CD4051 is a digitally controlled multiplexer/analog switch with low on-resistance and low off-state leakage current. It handles analog signal amplitudes up to 15Vₚ₋ₚ. For example, with VDD = 5V, GND = 0V, and VSS = -5V, the device uses 0V ~ 5V digital signals to control the transmission of -5V ~ +5V analog signals. The device is an 8-to-1 analog switch featuring three binary control inputs A0, A1, A2 and an enable input EN. The three binary input signals select any one of 8 analog channels to conduct. When the EN input is logic "1", all analog channels are disabled; when logic "0", all analog channels are enabled. CD4051 is available in SOP-16, DIP-16, TSSOP-16, QSOP-16, and QFN-16 packages.
