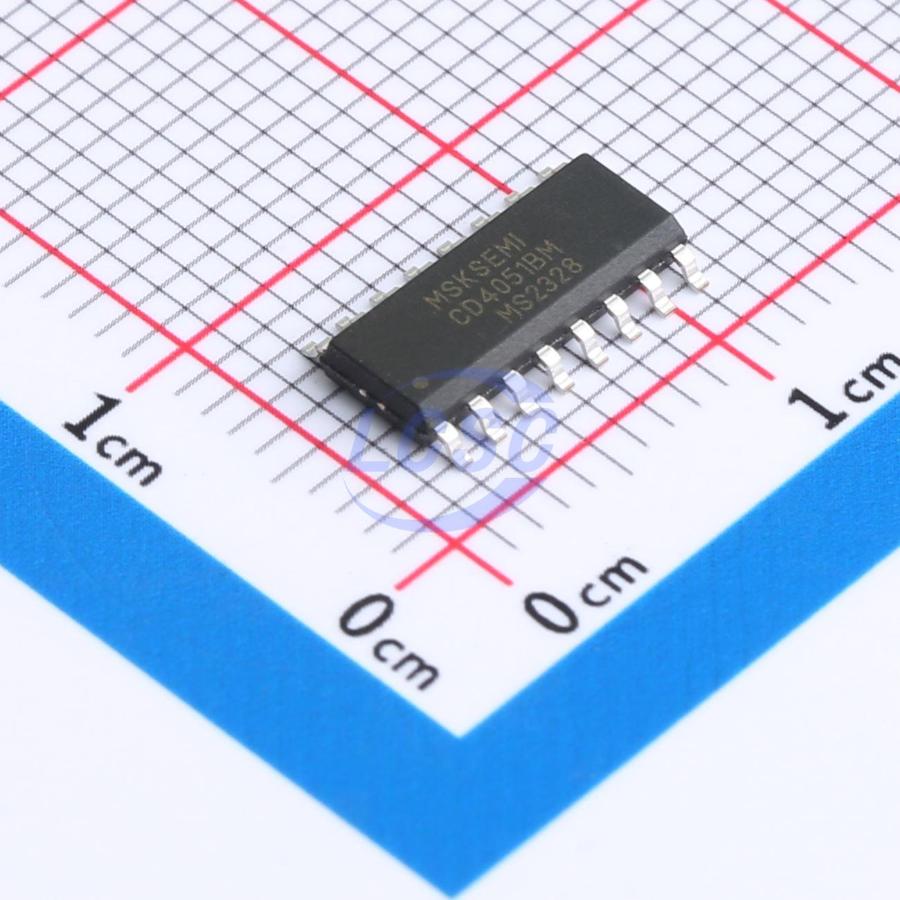

CD4051BM-MS

CD4051B is a single 8-channel multiplexer designed using advanced CMOS technology, configured as a single-pole eight-throw analog switch. It features three binary channel control inputs (A, B, C) and one enable input INH. The binary input signals control one of the 8 channels to turn on while the remaining channels are turned off.

Applications

• Analog and digital multiplexing and demultiplexing
• Logic level translation for digitally addressed signals
• Signal gating

Key features

• Low input current: IIN ≤1uA, VIN=VDD-VSS=15V, Ta=25°C
• Low quiescent power consumption: IDD = 0.2uA (typical) VDD-VSS=15V, Ta=25°C
• Low on-resistance: 60Ω (typical) @VDD-VSS=VDD-VEE=15V, Ta=25℃
• Channel leakage current: ±100nA (typical) VDD-VEE=15V
• Wide supply voltage VDD-VSS range: 3V~15V
• Break-before-make switching eliminates channel overlap turn-on
• SP8T analog switch configuration
• Package: DIP-16, SOP-16, TSSOP-16
