TECH PUBLIC

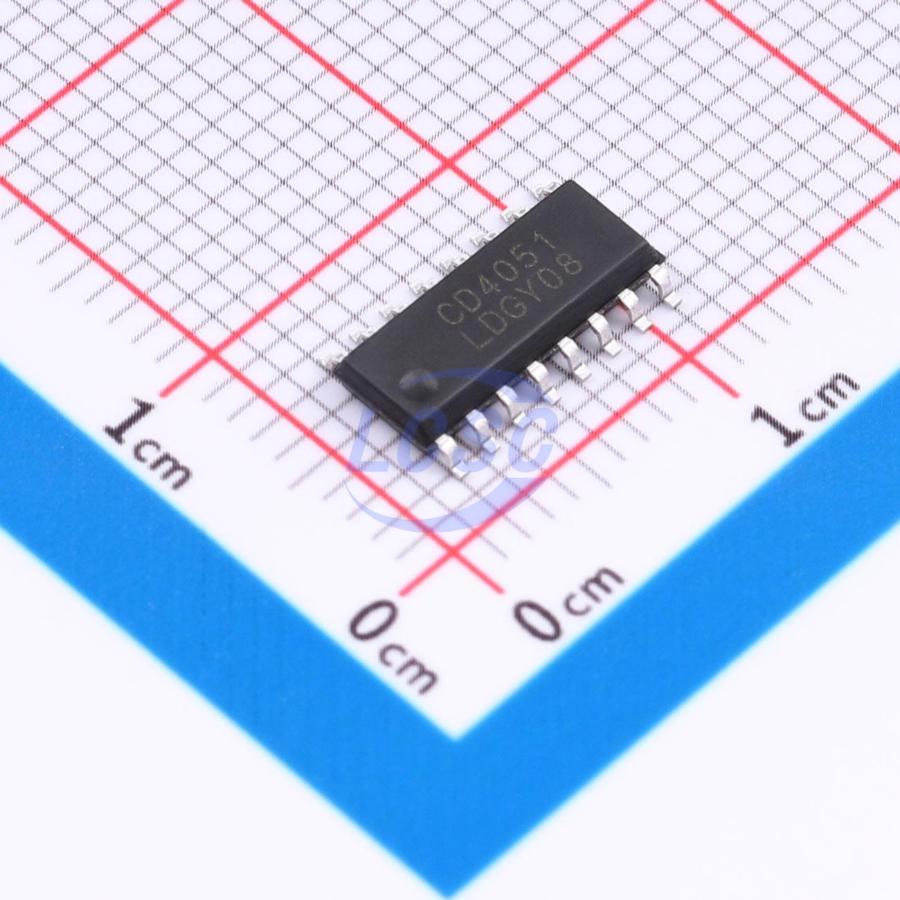

CD4051BM96-TP

1.3kΩ 1 SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: CD4051BM96-TP
Store part #: C53340861
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,750 in stock

#C53340861

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹14.66	₹73.30
50+	₹11.54	₹577.00
150+	₹9.98	₹1,497.00
500+	₹8.80	₹4,400.00
2,500+	₹7.86	₹19,650.00
5,000+	₹7.38	₹36,900.00

Quantity (min 5, multiples of 5)

5 × ₹14.66

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4051BM96-TP

₹73.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -55℃~+125℃
Ron: 1.3kΩ
Number of Channels: 1
Propagation Delay: 20ns
Con: 0.2pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.274 g

Overview

This is an analog multiplexer and demultiplexer, both digitally controlled. It is an analog switch featuring low on-resistance and extremely low off-state leakage current. These multiplexer circuits operate across the full VDD - VSS and VDD - VEE supply voltage ranges with very low quiescent power consumption, independent of the logic state of the control signals.

Applications

Sensors
Programmable Logic Circuits
Consumer Audio
Appliances
Television
Factory Automation
Signal Gating
Analog-to-Digital and Digital-to-Analog Conversion

Key features

Multi-level digital and analog signals:
Digital signals: 3V to 20V; analog signals: ≤20Vₚ₋ₚ
15Vₚ₋ₚ signal input range at VDD - VEE = 18V
Internal on-resistance as low as 125Ω (typical)
High off-resistance at VDD - VEE = 18V with channel leakage current ±10pA (typical)
On-chip binary address decoding
Rated parameters at 5V, 10V, and 15V
100% tested for quiescent current at 20V
Maximum input current 1μA at 18V over full package temperature range; 100nA at 18V and 25°C
Small package: SOP-16
