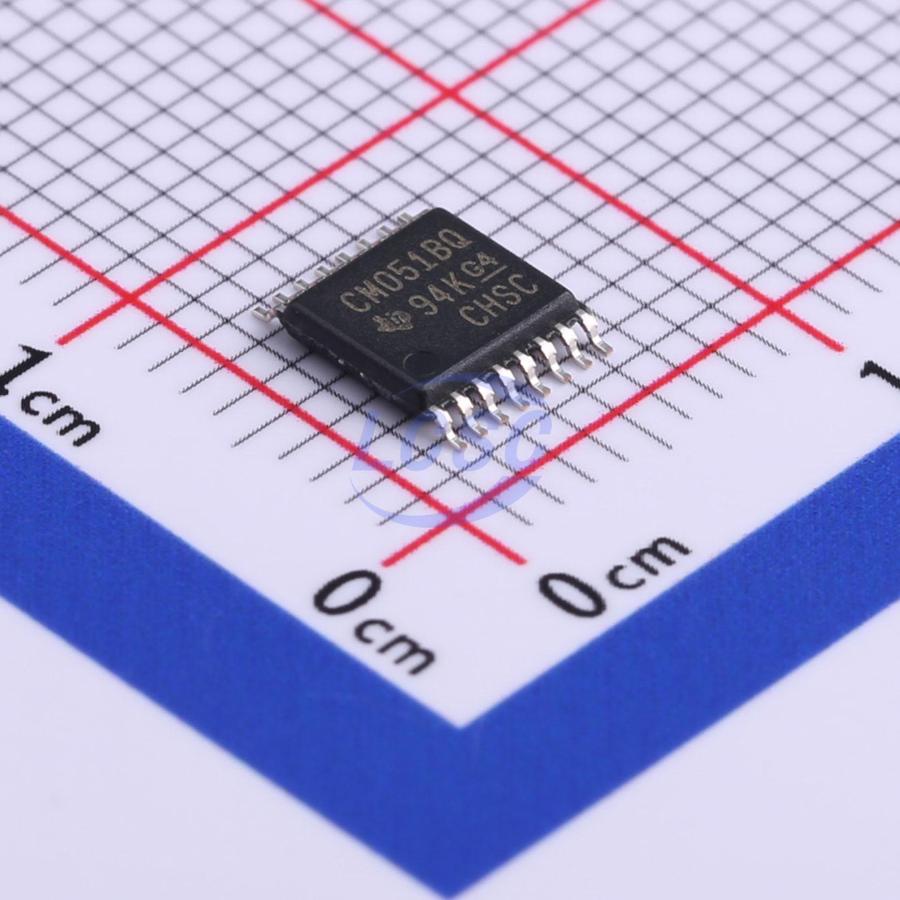

CD4051BQPWRQ1

3V~20V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

CMOS Single 8-Channel Analog Multiplexer/Demultiplexer with Logic-Level Conversion

Manufacturer: TI
Manufacturer part #: CD4051BQPWRQ1
Store part #: C555142
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,712 in stock

#C555142

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹84.29	₹84.29
10+	₹68.43	₹684.30
30+	₹60.61	₹1,818.30
100+	₹52.79	₹5,279.00
500+	₹41.93	₹20,965.00
1,000+	₹39.54	₹39,540.00

Quantity (min 1)

1 × ₹84.29

₹84.29

excl. GST

₹99.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CD4051BQPWRQ1

₹84.29 for 1 + GST

Specifications

Features: Level shifting;Break-before-make function
Operating Temperature: -45℃~+125℃
Series: CD4000
Quiescent Current: 5uA
Voltage - Supply: 3V~20V
Propagation Delay: 30ns@5V,50pF
Voltage Supply Source: Dual Supply

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.183 g

Overview

The CD405xB-Q1 analog multiplexers and demuliplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD - VSS and VDD - VEE supply-voltage ranges, independent of the logic state of the control signals.

Applications

Analog and Digital Multiplexing and Demultiplexing
A/D and D/A Conversion
Signal Gating
Factory Automation
Televisions
Appliances
Consumer Audio
Programmable Logic Circuits
Sensors

Key features

AEC-Q100 Qualified for Automotive Applications
Temperature Grade 1: -45℃ To +125℃, TA
Wide Range of Digital and Analog Signal Levels
Digital: 3V to 20V
Analog: ≤20 VP-P
Low ON Resistance, 125 Ω (Typical) Over 15 VP-P
High OFF Resistance, Channel Leakage of ±100 pA (Typical) at VDD - VEE = 18V
Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD - VSS = 3V to 20V) to Switch Analog Signals to 20 VP-P (VDD - VEE = 20V)
Matched Switch Characteristics, rON = 5 Ω (Typical) for VDD - VEE = 15V
Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2 μW (Typical) at VDD - VSS = VDD - VEE = 10V
Binary Address Decoding on Chip
5V, 10V, and 15V Parametric Ratings
100% Tested for Quiescent Current at 20V
Maximum Input Current of 1 μA at 18V Over Full Package Temperature Range, 100 nA at 18V and 25℃
Break-Before-Make Switching Eliminates Channel Overlap
