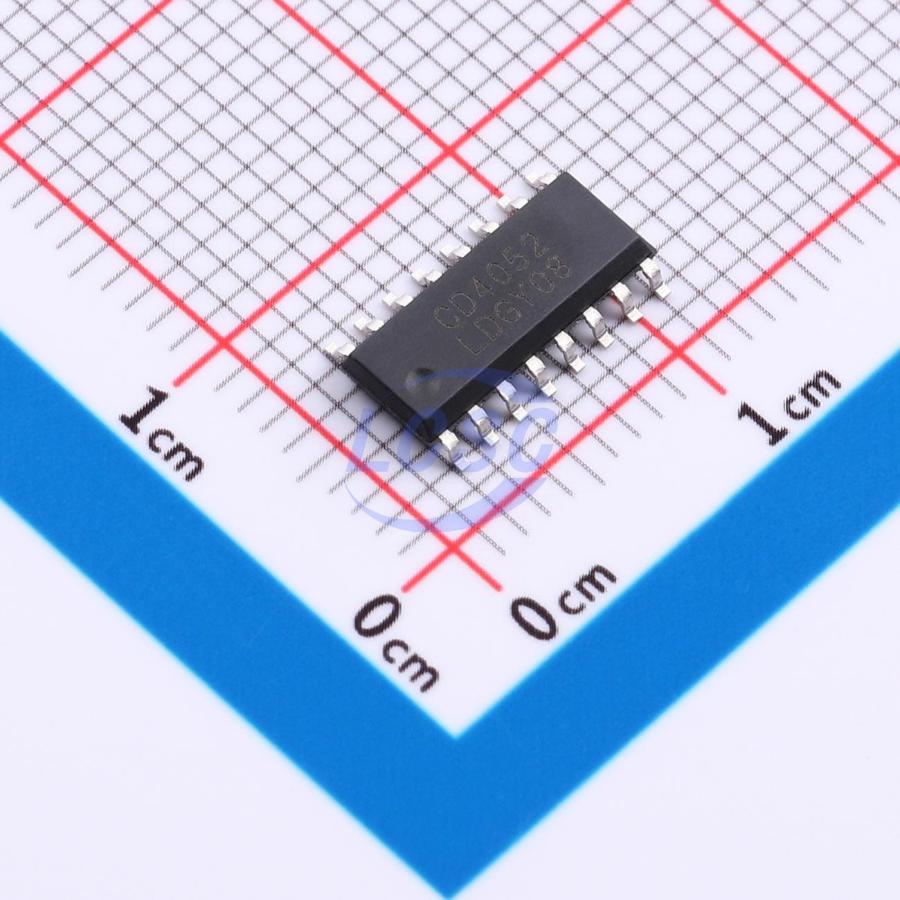

CD4052-SOP-16

The CD4052 analog switch is a multiplexed/selected analog switch controlled by digital signals, featuring low on-resistance and low off-state leakage current. It can handle analog signal amplitudes up to 15VPP. For example, with VDD = 5V, GND = 0V, and VSS = -5V, analog signals ranging from -5V to +5V can be controlled and transmitted by digital signals of 0V to 5V. This device is a dual 4-to-1 analog switch, where each 4-to-1 switch group includes two binary control inputs and one enable (EN) input. The two binary signals can select any one of four analog channels to conduct. When the EN input is logic "1", all channels of both switch groups are turned off; when logic "0", all channels are enabled. The CD4052 is available in SOP16 and DIP16 packages.

Applications

• Analog/digital multiplexing and demultiplexing
• Factory automation and control
• Building automation
• Battery test equipment
• Grid infrastructure

Key features

• Wide supply voltage range: 3V ~ 15V
• Low on-resistance: 100Ω (VDD-VSS=15V)
• Ultra-low quiescent power consumption and high off-state resistance
• Analog switch on-resistance difference ΔRON = 5Ω (VDD-VSS = 15V)
• Built-in analog switch control address decoder and level shifter
