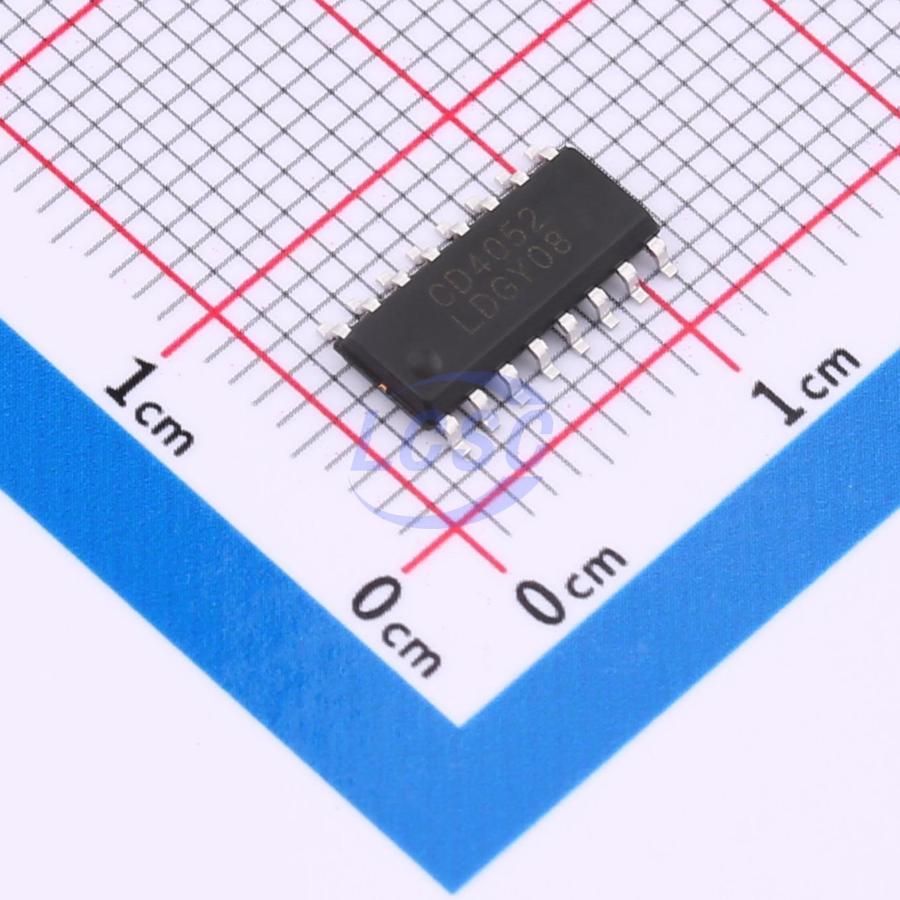

CD4052BM-TD

CD4052B is a dual differential 4-channel multiplexer designed with advanced CMOS technology, configured as a single-pole quad-throw analog switch. It features two binary channel control inputs (A and B) and an enable input INH. The two binary input signals simultaneously control one of the four channels in each switch path to turn on, while the remaining channels are turned off.

Applications

• Analog and digital multiplexing and demultiplexing
• Signal gating
• Logic level translation for digitally addressed signals
• Other application areas

Key features

• Low input current: IIN ≤ 1uA, @VIN=VDD-VSS=15V, Ta=25℃
• Low quiescent current: IDD = 0.2uA (typ) @VDD-VSS=15V, Ta=25℃
• On-resistance: 60Ω (typ) @VDD-VSS=VDD-VEE=15V, Ta=25℃
• Channel leakage current: ±100nA (typ) @VDD-VEE=15V
• Wide supply voltage VDD-VSS range: 3V～15V
• Break-before-make switching eliminates channel overlap
• SP4T analog switch configuration
• Package: DIP-16, SOP-16, TSSOP-16, QSOP-16, QFN-16 3*3
