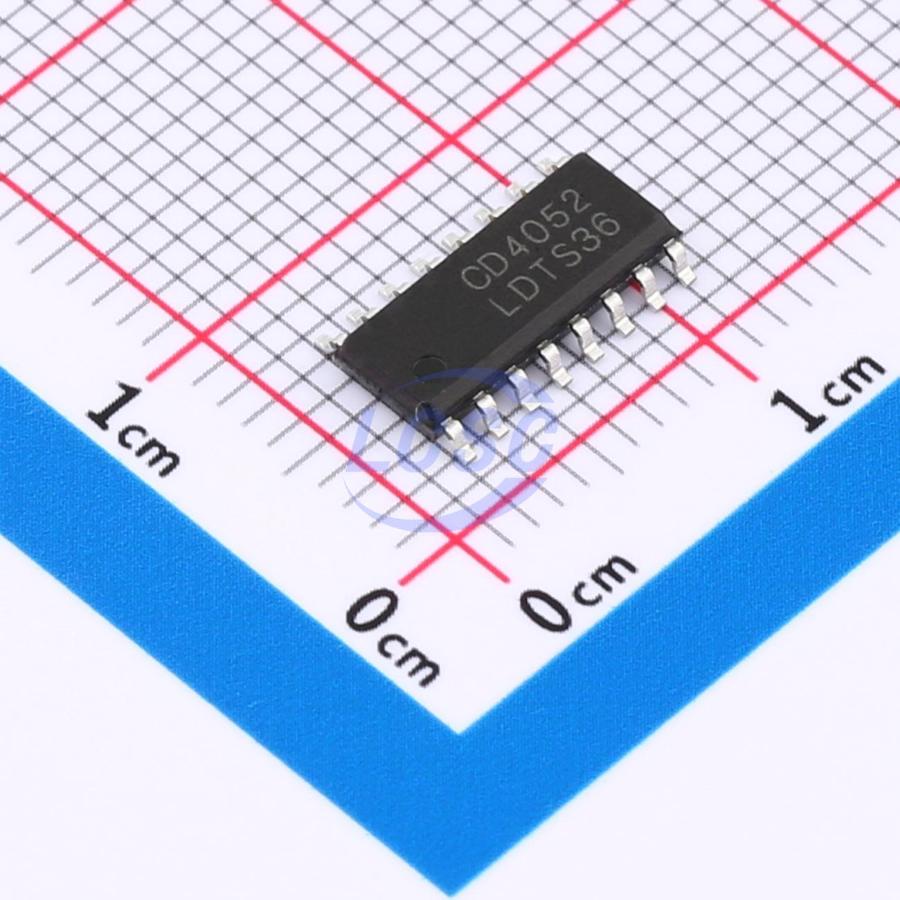

CD4052BM96-CN
2 Circuit IC SWITCH 4:1 100Ω SOP-16
SOP-16ROHS CompliantActive
Dual 4-channel Analog Multiplexer/Demultiplexer
- Manufacturer
- ChipNobo
- Manufacturer part #
- CD4052BM96-CN
- Store part #
- C42436864
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,090 in stock
#C42436864
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.98 | ₹64.90 |
| 50+ | ₹10.12 | ₹506.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.63 | ₹3,815.00 |
| 2,500+ | ₹7.09 | ₹17,725.00 |
| 5,000+ | ₹6.67 | ₹33,350.00 |
5 × ₹12.98
₹64.90
excl. GST
₹76.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4052BM96-CN
₹64.90 for 5 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 3V~15V
- Ron
- 100Ω
- Number of Channels
- 2
- Propagation Delay
- 55ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
The CD4052BM96-CN analog multiplexers/demultiplexers are digitally controlled analog switches featuring low on-state resistance and extremely low off-state leakage current. These multiplexer circuits dissipate extremely low quiescent power across the entire VDD-VSS and VDD-GND supply voltage range, independent of the logic state of the control signals. The device is available in an SOP16 package.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Factory automation and control
- Home appliances
- Building automation
Key features
- Wide supply voltage range: 3V to 15V
- Break-before-make switching
- Low on-resistance: RON = 100 Ω (VDD - VSS = 15 V)
- Ultra-low quiescent power consumption and high off-state resistance
- Analog switch on-resistance matching: ΔRON = 5 Ω (VDD-VSS=15V)
