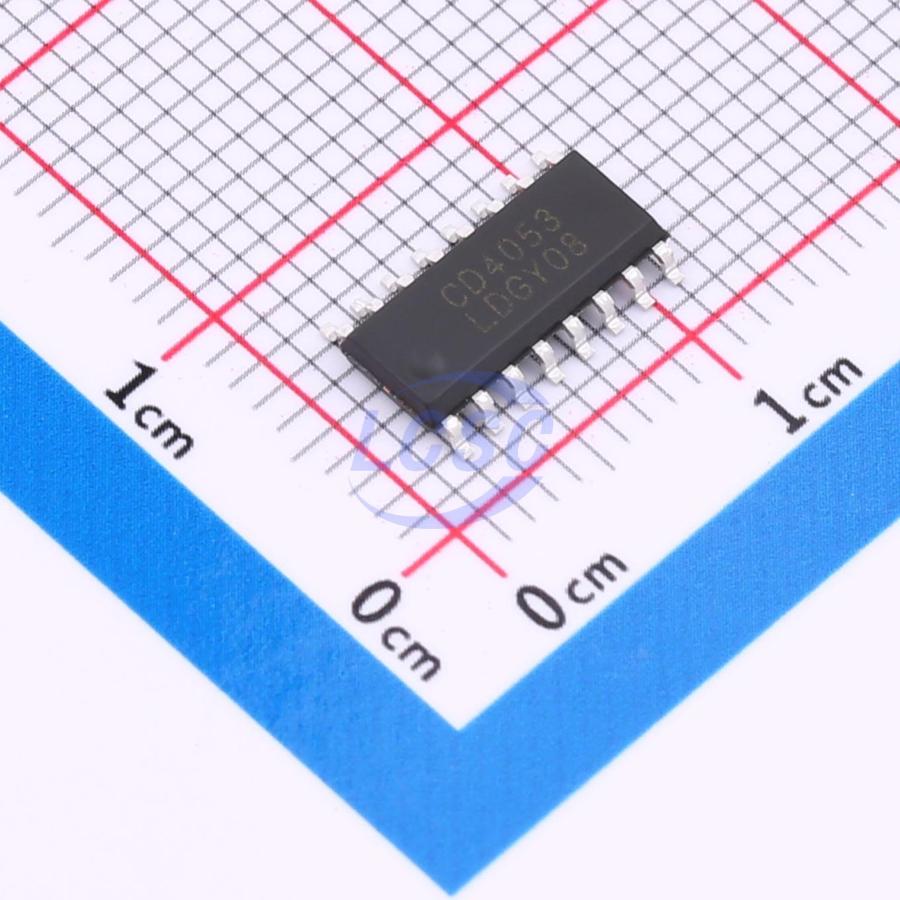

CD4053BM-TD

The CD4053B is a 3-channel, 2-to-1 analog multiplexer designed using advanced CMOS technology. It is an analog switch in a single-pole double-throw (SPDT) configuration, featuring three independent channel control inputs A, B, C and an enable input INH. The channel control inputs A, B, C independently control each of the 3 switches, selecting one of the two channels to turn on while the other remains off.

Applications

• Analog and digital multiplexing and demultiplexing
• Logic level translation for digitally addressed signals
• Signal gating

Key features

• Low input current: IIN ≤ 1uA @ Vin=VDD - Vss=15V, Ta=25°C
• Low quiescent current: IDD = 0.2uA (typ.) @ Vin - Vss=15V, Ta=25°C
• Low on-resistance: 90Ω (typ.) @ VDD - Vss=VDD - VEE=15V, Ta=25°C
• Channel leakage current: ±100μA (typ.) @ VDD - VEE=15V
• Wide supply voltage VDD - VSS range: 3V～15V
• Break-before-make switching eliminates channel overlap
• SPDT analog switch configuration
• Package: DIP-16, SOP-16, TSOP-16, QSOP-16, QFN-16 3*3
