JSCJ

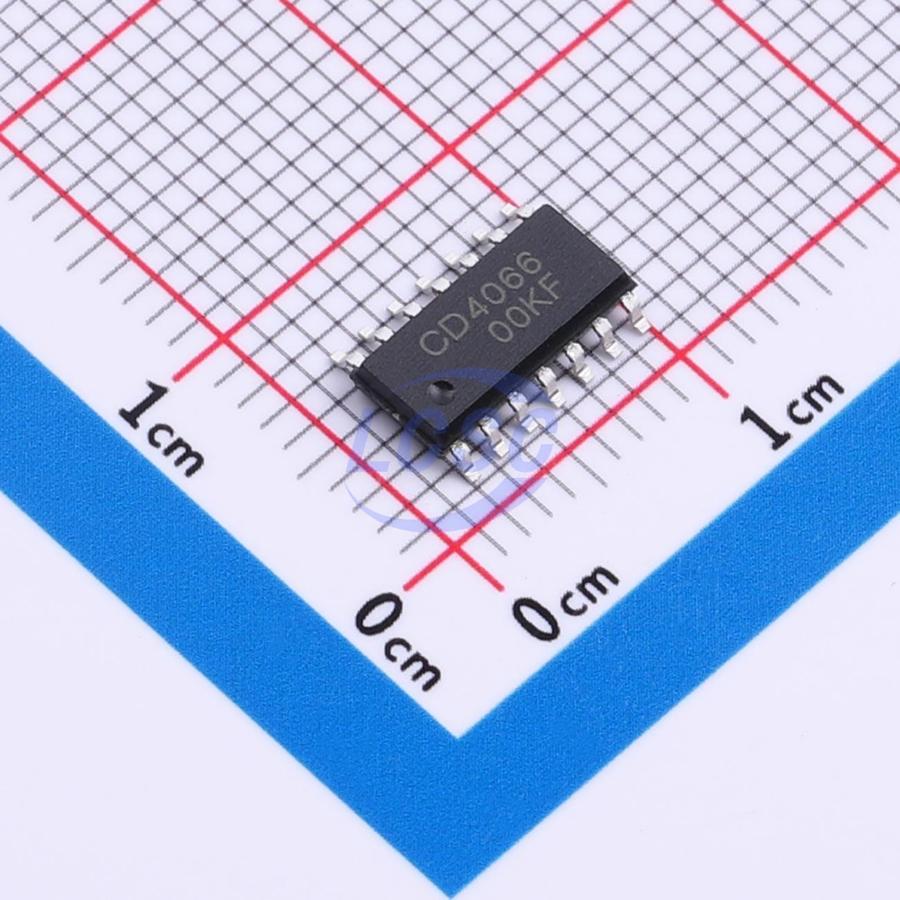

CD4066ADN

3V~9V 4 2.5kΩ@5V SOP-14 Analog Switches, Multiplexers, Demultiplexers

SOP-14RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CD4066ADN
Store part #: C52145437
Package / case: SOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,875 in stock

#C52145437

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹26.57	₹132.85
50+	₹20.69	₹1,034.50
150+	₹18.18	₹2,727.00
500+	₹15.04	₹7,520.00
2,500+	₹13.65	₹34,125.00
4,000+	₹12.81	₹51,240.00

Quantity (min 5, multiples of 5)

5 × ₹26.57

₹132.85

excl. GST

₹156.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4066ADN

₹132.85 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel
Voltage - Supply: 3V~9V
Number of Channels: 4
Ron: 2.5kΩ@5V
Propagation Delay: 10ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.315 g

Overview

This device provides four single-pole single-throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active-high enable input (nE). When nE is low, the analog switch is turned off. This device is pin-compatible with the CD4016 but features lower on-resistance. Furthermore, its on-resistance remains relatively constant across the entire input signal range.
