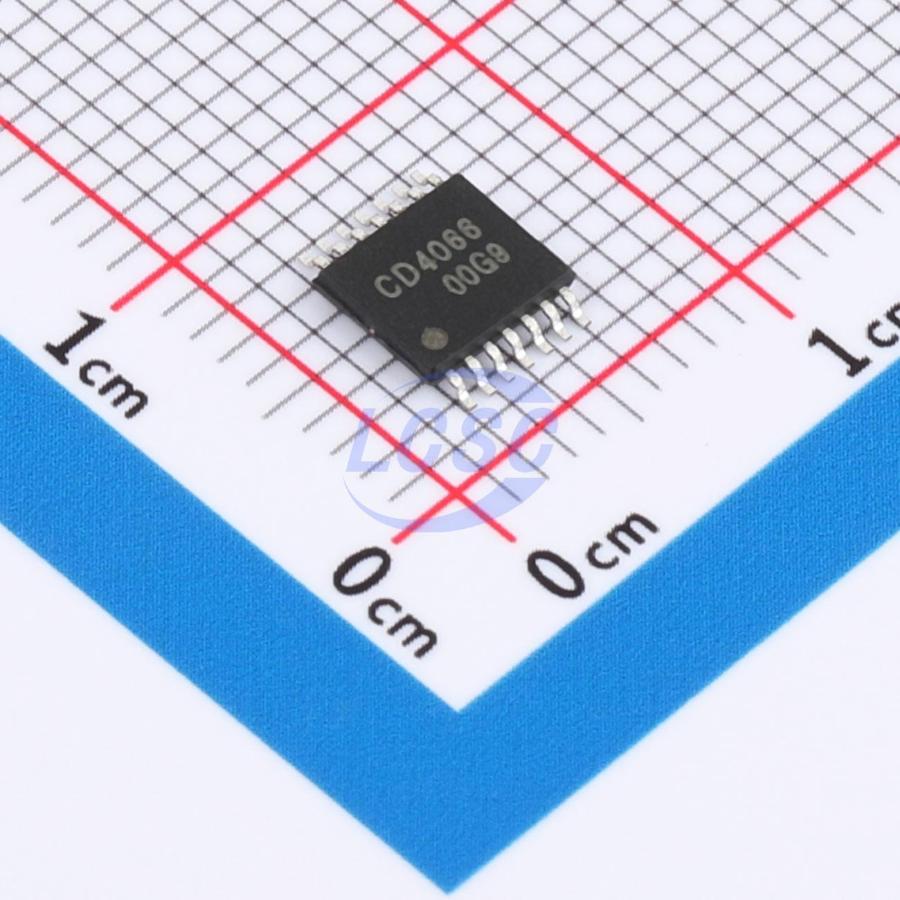

JSCJ

CD4066BDN

2.5kΩ 3V~9V 4 TSSOP-14 Analog Switches, Multiplexers, Demultiplexers

TSSOP-14RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CD4066BDN
Store part #: C52145438
Package / case: TSSOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,980 in stock

#C52145438

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.86	₹79.30
50+	₹15.48	₹774.00
150+	₹15.21	₹2,281.50
500+	₹14.95	₹7,475.00

Quantity (min 5, multiples of 5)

5 × ₹15.86

₹79.30

excl. GST

₹93.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CD4066BDN

₹79.30 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel
Ron: 2.5kΩ
Voltage - Supply: 3V~9V
Number of Channels: 4
Propagation Delay: 10ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.235 g

Overview

This device provides four single-pole single-throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active-high enable input (nE). When nE is low, the analog switch is turned off. This device is pin-compatible with the CD4016 but features lower on-resistance. Furthermore, its on-resistance remains relatively constant across the entire input signal range.
