lingxingic

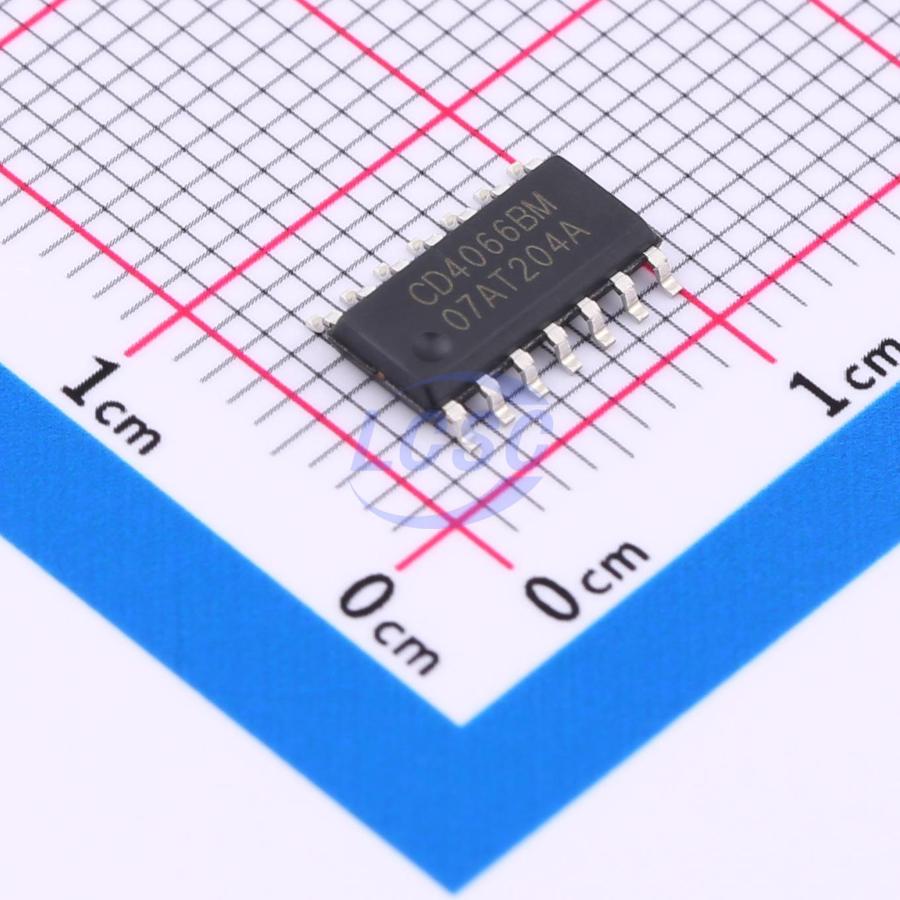

CD4066BM(LX)

350Ω 3V~9V 4 SOP-14 Analog Switches, Multiplexers, Demultiplexers

SOP-14RoHSActive

Quad Bilateral Switches

Manufacturer: lingxingic
Manufacturer part #: CD4066BM(LX)
Store part #: C22390241
Package / case: SOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,015 in stock

#C22390241

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.23	₹76.15
50+	₹12.24	₹612.00
150+	₹10.76	₹1,614.00
500+	₹9.63	₹4,815.00
2,500+	₹8.73	₹21,825.00
4,000+	₹8.28	₹33,120.00

Quantity (min 5, multiples of 5)

5 × ₹15.23

₹76.15

excl. GST

₹89.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4066BM(LX)

₹76.15 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 350Ω
Voltage - Supply: 3V~9V
Number of Channels: 4
Propagation Delay: 10ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.25 g

Overview

The CD4066 provides four single-pole, single-throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. The CD4066 is pin compatible with the CD4016 but exhibits a much lower ON resistance. In addition the ON resistance is relatively constant over the full input signal range.
