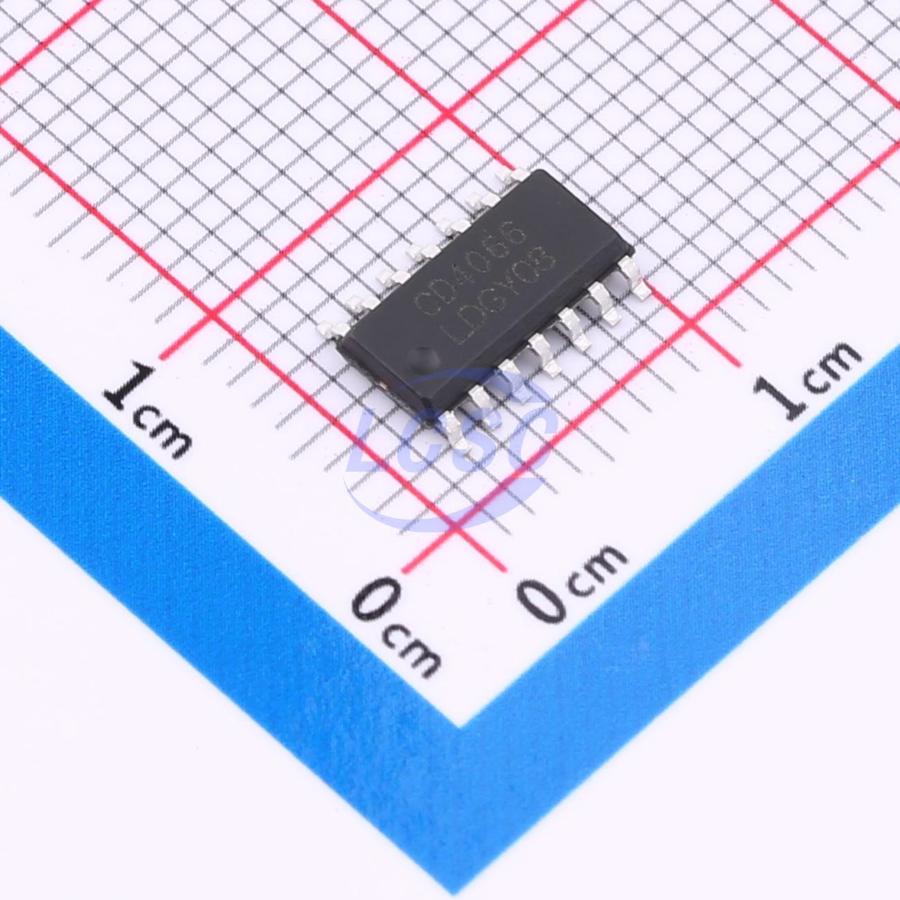

CD4066BM-TD TDSEMIC
TDSEMIC

CD4066BM-TD

4 3V~15V 240Ω SOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS

SOP-14ROHS CompliantActive

CD4066 Quad Bilateral Switches

Manufacturer
TDSEMIC
Manufacturer part #
CD4066BM-TD
Store part #
C42421849
Package / case
SOP-14
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,745 in stock

#C42421849

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹14.45₹72.25
50+₹11.47₹573.50
150+₹9.99₹1,498.50
500+₹8.88₹4,440.00
2,500+₹7.99₹19,975.00
5,000+₹7.54₹37,700.00

5 × ₹14.45

₹72.25

excl. GST

₹85.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,500 per reel

CD4066BM-TD

₹72.25 for 5 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+85℃
Number of Channels
4
Voltage - Supply
3V~15V
Ron
240Ω
Propagation Delay
20ns

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
2,500 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.253 g

Overview

The CD4066B provides four single- pole, single- throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off.

Key features

  • Wide supply voltage range from 3V to 15V
  • Fully static operation
  • 5V and 15V parametric ratings
  • Standardized symmetrical output characteristics
  • Inputs and outputs are protected against electrostatic effects
  • Specified from -40°C to +85°C
  • Packaging information: DIP14/SOP14/TSSOP14
