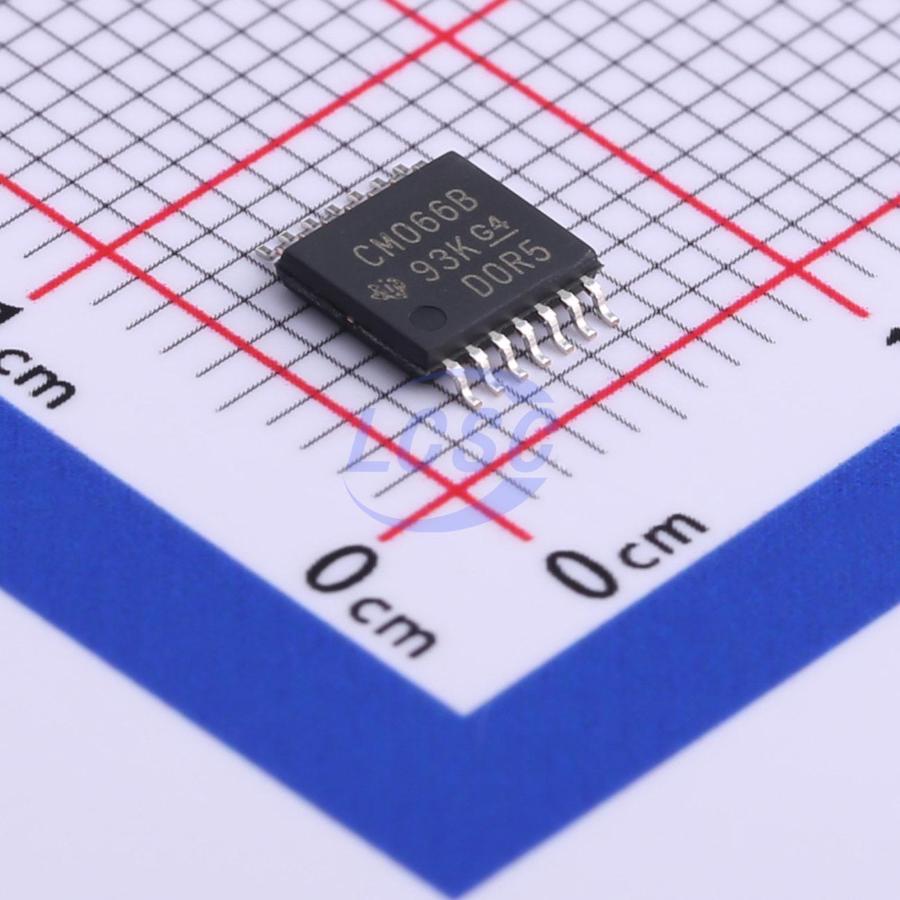

CD4066BPWR

The CD4066B device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016B device, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signalinput range. The CD4066B device consists of four bilateral switches, each with independent controls. Both the p and the n devices in a given switch are biased on or off simultaneously by the control signal. This configuration eliminates the variation of the switchtransistor threshold voltage with input signal and, thus, keeps the on-state resistance low over the full operating-signal range. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range. However, for sample-and-hold applications, the CD4016B device is recommended. Bidirectional Signal Transmission Via Digital Control Logic

Applications

• Analog Signal Switching and Multiplexing: Signal Gating, Modulators, Squelch Controls, Demodulators, Choppers, Commutating Switches
• Digital Signal Switching and Multiplexing
• Transmission-Gate Logic Implementation
• Analog-to-Digital and Digital-to-Analog Conversions
• Digital Control of Frequency, Impedance, Phase, and Analog-Signal Gain
• Building Automation

Key features

• 15-V Digital or ±7.5 V Peak-to-Peak Switching
• 125-Ω Typical On-State Resistance for 15-V Operation
• Switch On-State Resistance Matched to Within 5 Ω Over 15-V Signal-Input Range
• On-State Resistance Flat Over Full Peak-to-Peak Signal Range
• High On or Off Output-Voltage Ratio: 80 dB Typical at f(is)=10 kHz, R(L)=1 kΩ
• High Degree of Linearity: <0.5% Distortion Typical at f(is)=1 kHz, V(is)=5 - V(p-p), V(DD)-V(SS)≥10 - V, R(L)=10 kΩ
• Extremely Low Off-State Switch Leakage, Resulting in Very Low Offset Current and High Effective Off-State Resistance: 10 pA Typical at V(DD)-V(SS)=10 - V, T(A)=25°C
• Extremely High Control Input Impedance (Control Circuit Isolated From Signal Circuit): 10^12 Ω Typical
• Low Crosstalk Between Switches: -50 dB Typical at f(is)=8 MHz, R(L)=1 kΩ
• Matched Control-Input to Signal-Output Capacitance: Reduces Output Signal Transients
• Frequency Response, Switch On = 40 MHz Typical
• 100% Tested for Quiescent Current at 20-V, 5-V, 10-V, and 15-V Parametric Ratings
