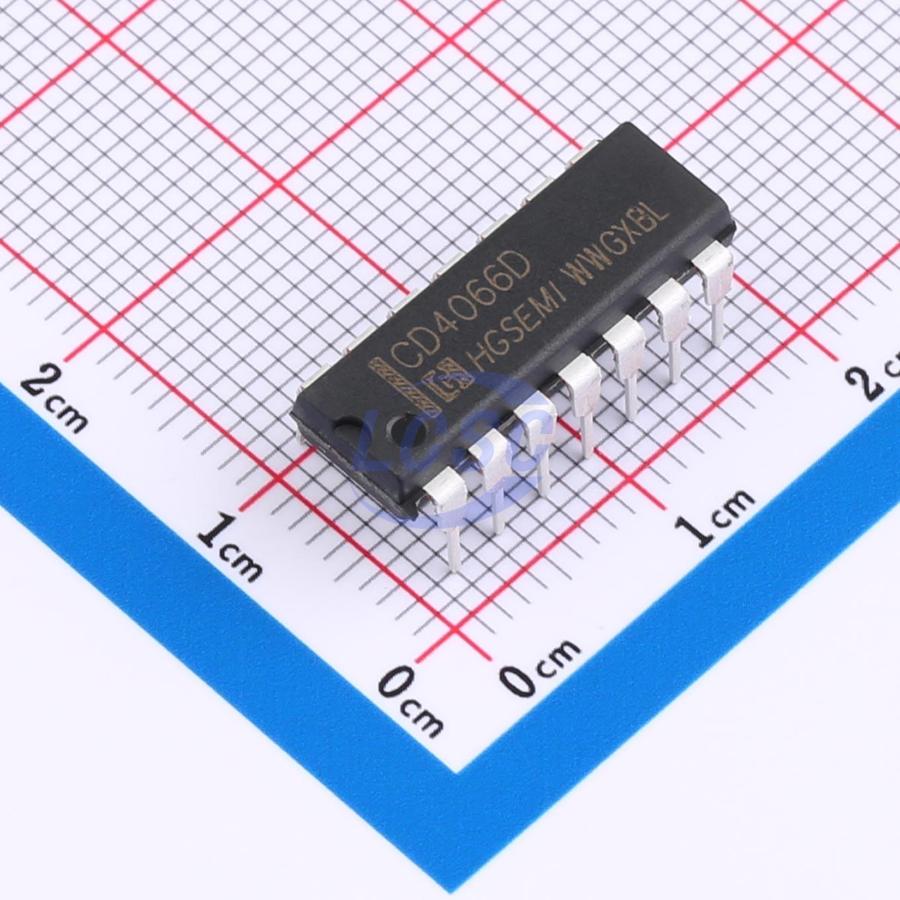

CD4066DN

The CD4066D is a quad bilateral analog switch designed for analog or digital signal transmission or multiplexing, featuring low on-resistance that remains relatively constant across the full input signal range. The device contains four independently controlled switches, each with a dedicated control pin. The control signal simultaneously biases both the P-type and N-type devices within each switch to turn them on or off. The substrate of the N-channel device in each switch is connected to the input signal terminal (when the switch is on) or to VSS (when the switch is off). This configuration eliminates the variation in switch transistor threshold voltage caused by input signal fluctuations, thereby achieving low on-resistance across the entire operating signal range. The device is available in SOP-14, TSSOP-14, DIP-14, QSOP-16, and QFN-16 packages.

Applications

• Analog signal switching and multiplexing
• Digital signal switching and multiplexing
• Transmission gate logic implementation
• ADC and DAC
• Digital control of frequency, impedance, phase, and analog signals

Key features

• Wide supply voltage range: 3~15V
• Low on-resistance: 80 Ω (VDD - VSS = 15V)
• On-resistance matching: 5 Ω (VDD - VSS = 15V)
• Flat on-resistance over peak-to-peak signal range
• Extremely low quiescent power consumption
• Extremely high control input impedance
