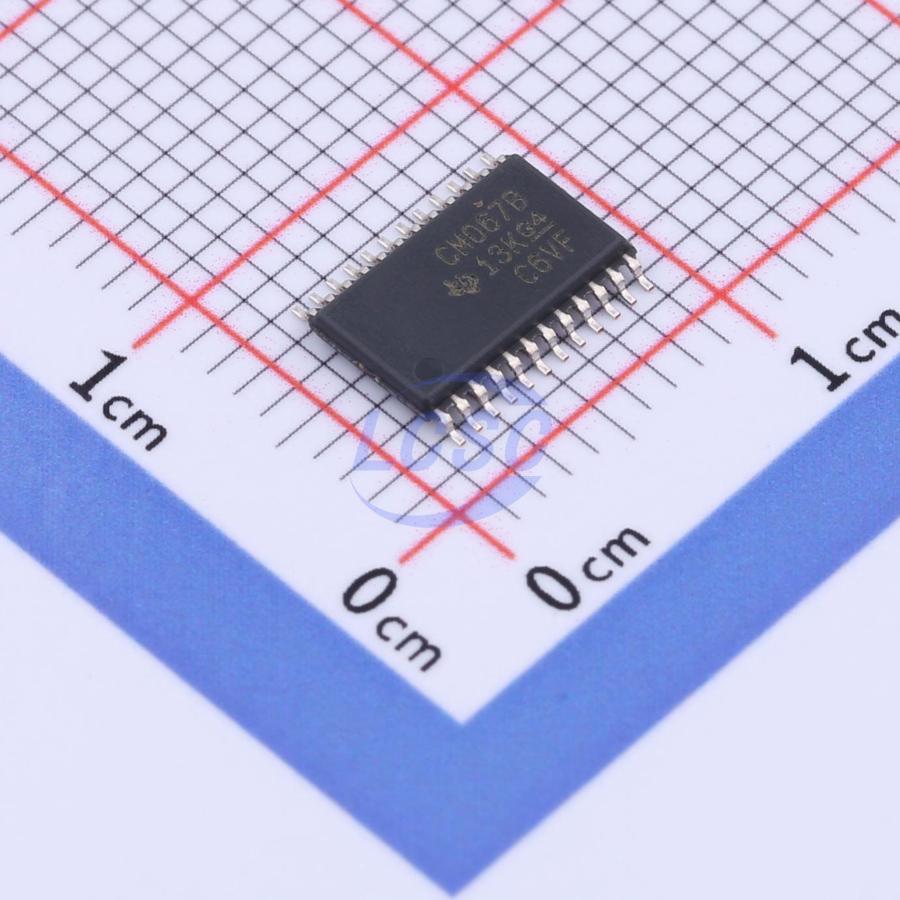

CD4067BPWR

CD4067B and CD4097B CMOS analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067B is a 16-channel multiptexer with four binary control inputs, A,B,C,D, and an inhibit input, arranged so that any combination of the inputs selects one switch. The CD4097B is a differential 8-channel multiplexer having three binary control inputs A, B, C, and an inhibit input. The inputs permit selection of one of eight pairs of switches. A logic "1" present at the inhibit input turns all channels off. The CD4067B and CD4097B types are supplied in 24-lead hermetic dual-in-line ceramic packages (F3A suffix), 24-lead dual-in-line plastic packages (E suffix), 24-lead small-outline packages (M, M96, and NSR suffixes), and 24-lead thin shrink small-outline packages (P and PWR suffixes).

Applications

• Analog and digital multiplexing and demultiplexing
• A/D and D/A conversion
• Signal gating

Key features

• Low ON resistance: 125 Ω (typ.) over 15 vp-p signal-input range for vDD - VSS = 15 V
• High OFF resistance: channel leakage of ±10 pA (typ.) @ VDD - VSS = 10 V
• Matched switch characteristics: RON = 5 Ω (typ.) for vDD - VSS = 15 V
• Very low quiescent power dissipation under all digital-control input and supply conditions: 0.2 μW (typ.) @ VDD - VSS = 10 V
• Binary address decoding on chip
• 5-V, 10-V, and 15-V parametric ratings 100% tested for quiescent current at 10 V
• Standardized symmetrical output characteristics
• Maximum input current of 1 μA at 18 V over full package temperature range; 100 nA at 18 V and 25°C
• Meets all requirements of JEDEC Tentative Standard No. 138, "Standard Specifications for Description of B' Series CMOS Devices"
