Shenzhen CYT Semicon Tech

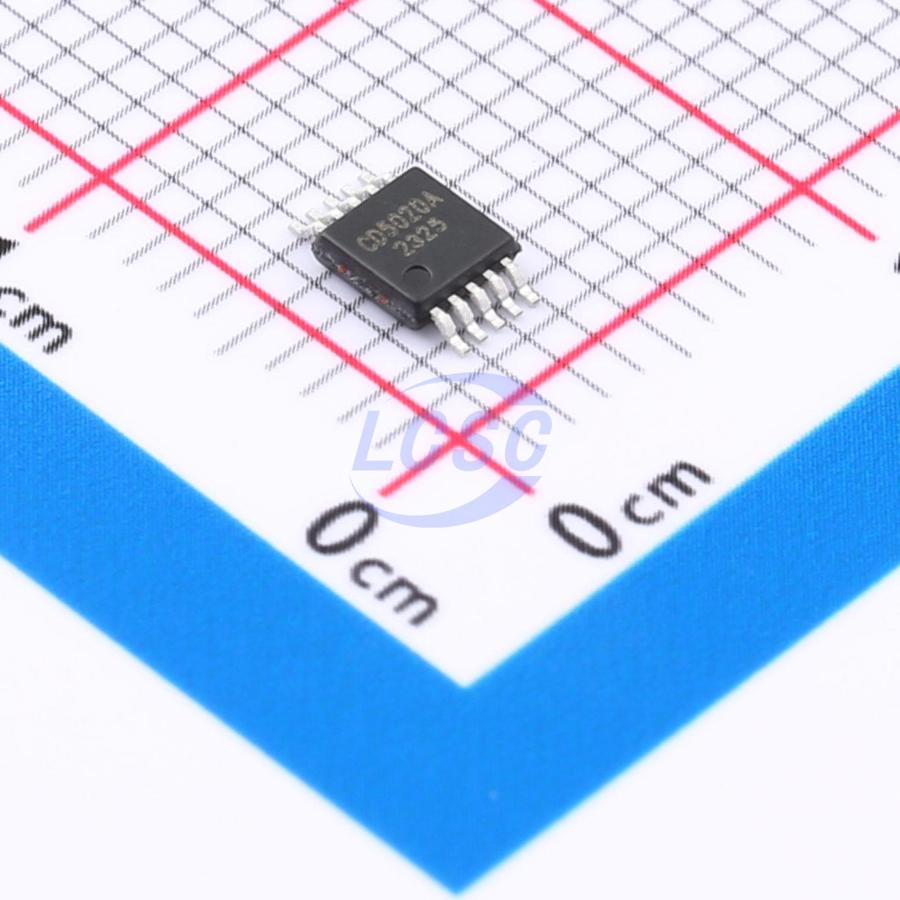

CD5020AIVS

nan

VSSOP-10RoHSActive

High-Voltage PWM Controller

Manufacturer: Shenzhen CYT Semicon Tech
Manufacturer part #: CD5020AIVS
Store part #: C7502972
Package / case: VSSOP-10
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,151 in stock

#C7502972

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹771.84	₹771.84
10+	₹734.25	₹7,342.50
30+	₹711.22	₹21,336.60
100+	₹692.10	₹69,210.00

Quantity (min 1)

1 × ₹771.84

₹771.84

excl. GST

₹910.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CD5020AIVS

₹771.84 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 210kHz;660kHz
Number of Outputs: 1
Features: Adjustable soft-start;Cycle-by-cycle current limiting;Frequency synchronization
Operating Voltage: 13V~90V
Switch tube (built-in/external): External
Output Current: 1A
Quiescent Current: 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.247 g

Overview

CD5020A is a high-voltage PWM control IC capable of implementing most single-ended topology power output conversions. Voltage regulation is based on current-mode control, simplifying loop compensation design. The CD5020A integrates a high-voltage startup regulator supporting a wide input range up to 100V. This PWM IC is designed for high-speed oscillator operation, with a frequency range up to 1MHz and total propagation delay of less than 100ns. The IC also incorporates an error amplifier, high-precision reference, undervoltage protection, cycle-by-cycle overcurrent protection, slope compensation, soft-start, oscillator synchronization capability, and thermal protection.
