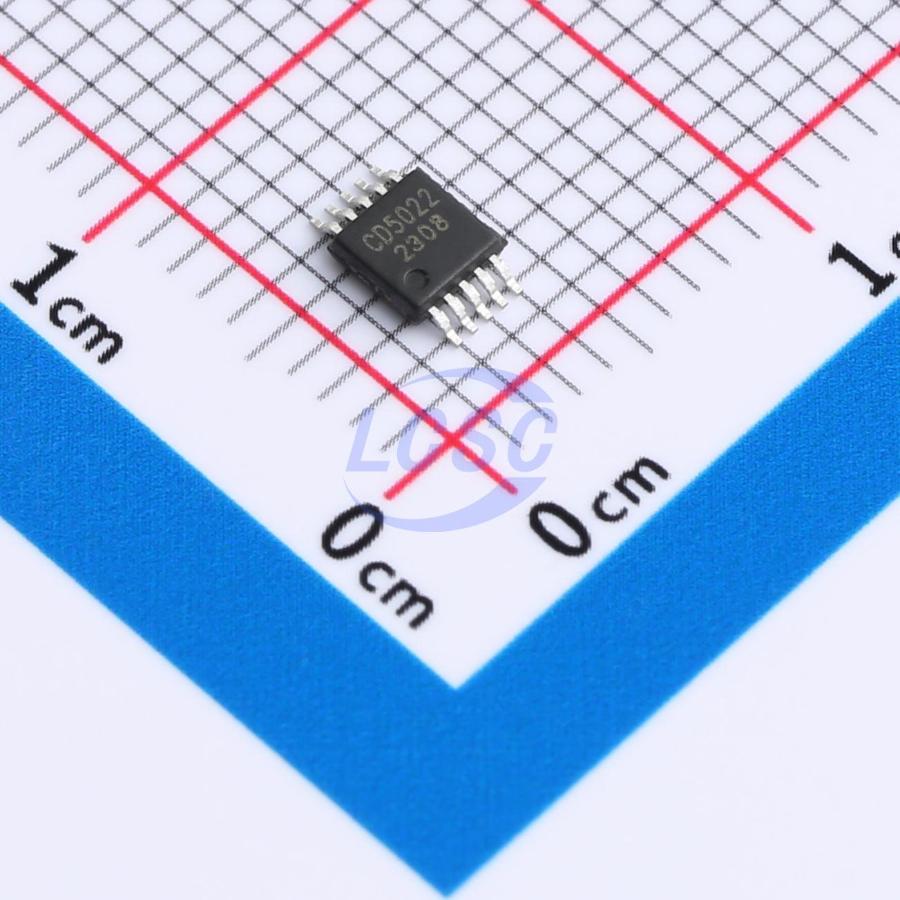

CD5022IVS

The CD5022 is a high-voltage, low-side, N-channel MOSFET controller for Boost and SEPIC regulators. The device includes all the features required to implement single-ended primary topologies. Output voltage regulation is based on current-mode control, which not only simplifies loop compensation design but also provides inherent input voltage feedforward. The CD5022 integrates a startup regulator capable of operating over a wide input voltage range of 6V to 60V. The PWM controller is designed for high-speed performance and features an oscillator with a frequency range up to 2.2MHz and a total propagation delay of less than 100ns. Additional features include an error amplifier, precision reference, line undervoltage lockout, cycle-by-cycle current limiting, slope compensation, soft-start, external synchronization, and thermal shutdown.

Applications

• Boost Converter/SEPIC Converter

Key features

• Internal 60V startup regulator
• N-channel MOSFET gate driver with 1A peak current
• VIN range: 6V to 60V (after startup, minimum operating voltage down to 3V)
• Duty cycle limit 90%
• Programmable UVLO hysteresis
• Cycle-by-cycle current limiting
• Synchronizable to external devices (AC-coupled)
• Single-resistor oscillator frequency setting
• Slope compensation
• Adjustable soft-start
• Package: VSSOP10
