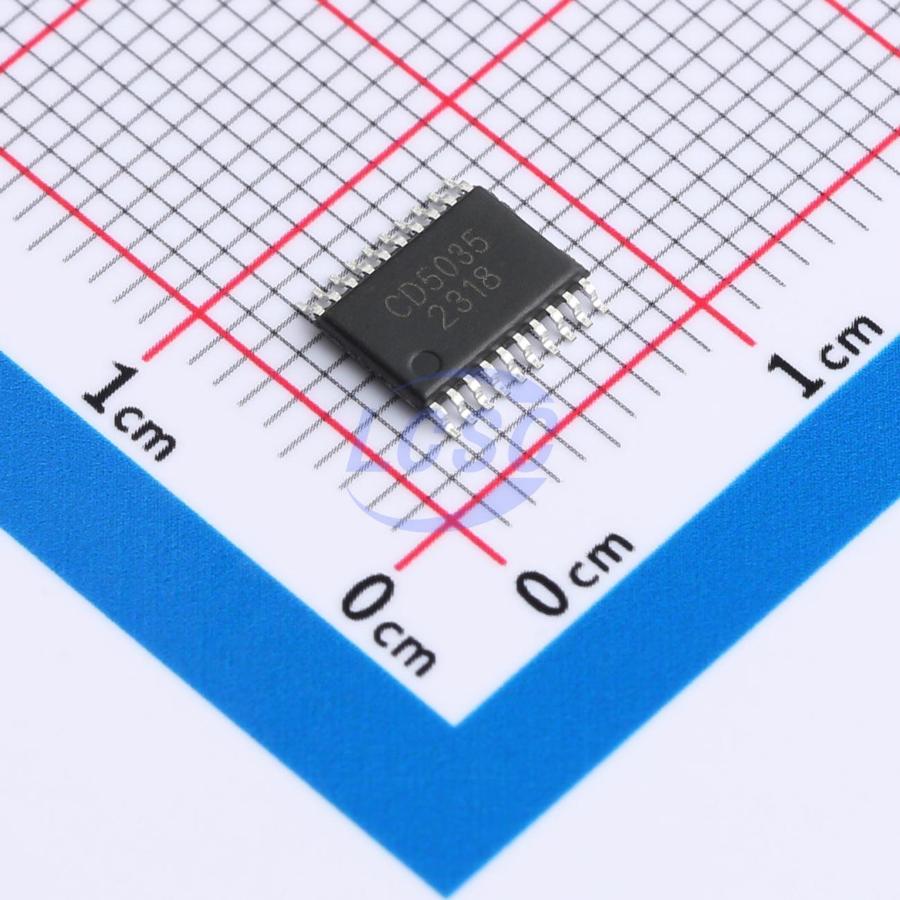

CD5035IHTS
Switching Regulator IC 1 Output 2A HTSSOP-20
HTSSOP-20RoHSActive
Half-Bridge PWM Controller
- Manufacturer
- Shenzhen CYT Semicon Tech
- Manufacturer part #
- CD5035IHTS
- Store part #
- C7502980
- Package / case
- HTSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,035 in stock
#C7502980
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,148.06 | ₹1,148.06 |
| 10+ | ₹1,096.07 | ₹10,960.70 |
| 30+ | ₹1,064.27 | ₹31,928.10 |
| 100+ | ₹1,037.63 | ₹1,03,763.00 |
1 × ₹1,148.06
₹1,148.06
excl. GST
₹1,354.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CD5035IHTS
₹1,148.06 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 200kHz;500kHz
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization
- Topology
- Half-Bridge
- Operating Voltage
- 13V~105V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
CD5035 is a half-bridge PWM controller for half-bridge topology power conversion, with a maximum operating voltage of 105V. Both high-side and low-side gate drivers feature 2A peak current drive capability. The device integrates an internal startup regulator along with programmable input undervoltage lockout (UVLO) and overvoltage protection (OVP). A single resistor programs the oscillator frequency up to 2MHz, with support for external clock synchronization. Current sense input and a programmable timer provide cycle-by-cycle current limiting and adjustable hiccup-mode overcurrent protection.
Applications
- DC/DC Power Supply
Key features
- 105V, 2A half-bridge gate driver with programmable dead time
- High-voltage bootstrap regulator
- Voltage mode control
- Resistor-programmable oscillator up to 2MHz
- Oscillator synchronization
- Programmable input UVLO
- Input overvoltage protection
- Thermal shutdown protection
- Adjustable soft-start with cycle-by-cycle overcurrent protection
- Multi-function dual-mode overcurrent protection
- Direct optocoupler interface
- Package: HTSSOP20, WQFN24
