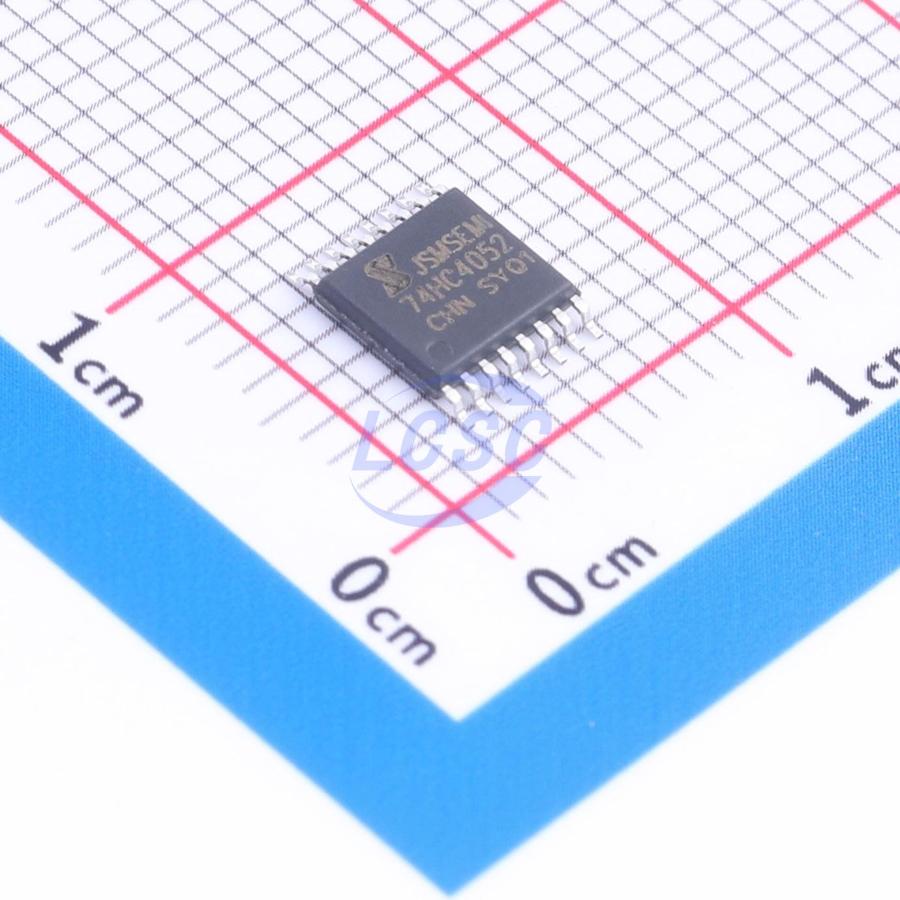

JSMSEMI

CD74HC4052PWR-JSM

3V~9V 4 225Ω@4.5V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: CD74HC4052PWR-JSM
Store part #: C53436301
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,310 in stock

#C53436301

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.64	₹113.20
50+	₹17.87	₹893.50
150+	₹15.82	₹2,373.00
500+	₹13.28	₹6,640.00
2,500+	₹12.15	₹30,375.00
5,000+	₹11.46	₹57,300.00

Quantity (min 5, multiples of 5)

5 × ₹22.64

₹113.20

excl. GST

₹133.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD74HC4052PWR-JSM

₹113.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel
Voltage - Supply: 3V~9V
Number of Channels: 4
Ron: 225Ω@4.5V
Propagation Delay: 13ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

74HC/HCT4052 is a dual single-pole quad-throw analog switch (2×SP4T) for analog or digital 4:1 multiplexing/demultiplexing applications. Each switch has four independent input/outputs (nY0, nY1, nY2, and nY3) and a common input/output (nZ). Both switches share a digital enable input (E) and two digital select inputs (S0 and S1). When E is HIGH, the switches are turned off. The inputs feature clamping diodes, enabling inputs to be connected to voltages exceeding VCC using current-limiting resistors.
