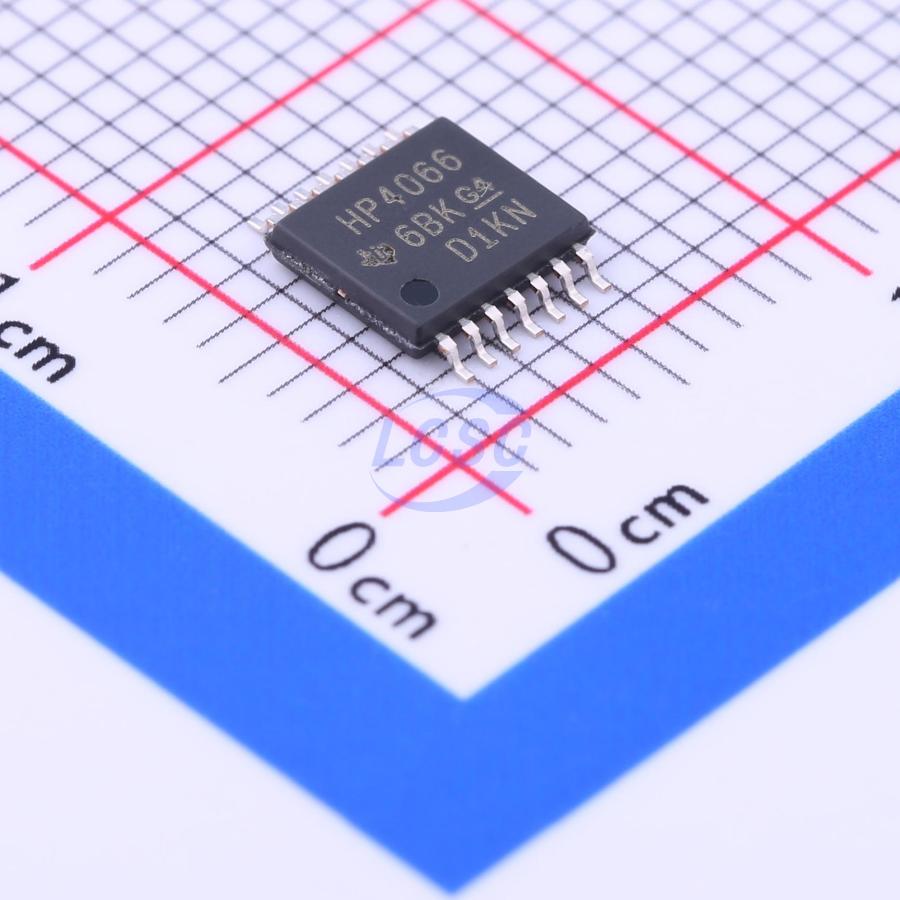

CD74HC4066PWR

The ’HC4066 and CD74HCT4066 contain four independent digitally controlled analog switches that use silicon-gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS integrated circuits. These switches feature the characteristic linear “ON” resistance of the metal-gate CD4066B. Each switch is turned on by a high-level voltage on its control input.

Key features

• Fast Switching and Propagation Delay Times
• Low “OFF” Leakage Current
• Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min)
• CMOS Input Compatibility, I ≤ 1μA at VOL, VOH
