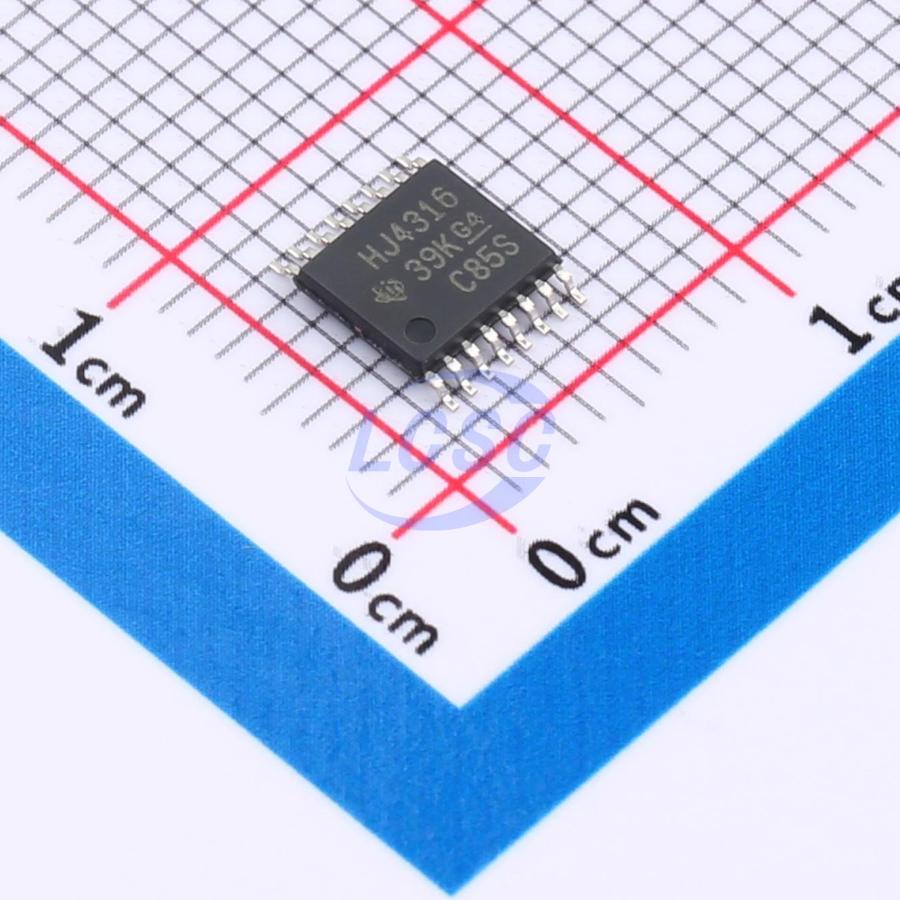

CD74HC4316PWR
45Ω 2V~6V 4 TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS3 CompliantActive
Quad Analog Switch with Level Translation
- Manufacturer
- TI
- Manufacturer part #
- CD74HC4316PWR
- Store part #
- C2673251
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C2673251
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.94 | ₹51.94 |
| 10+ | ₹40.64 | ₹406.40 |
| 30+ | ₹35.21 | ₹1,056.30 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹29.12 | ₹14,560.00 |
| 1,000+ | ₹28.26 | ₹28,260.00 |
1 × ₹51.94
₹51.94
excl. GST
₹61.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD74HC4316PWR
₹51.94 for 1 + GST
Specifications
- Features
- Level shifting
- Operating Temperature
- -55℃~+125℃
- Ron
- 45Ω
- Voltage - Supply
- 2V~6V
- Number of Channels
- 4
- Propagation Delay
- 12ns
- Con
- 5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.348 g
Overview
The ’HC4316 and CD74HCT4316 contain four independent digitally controlled analog switches that use silicon-gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS integrated circuits.
Key features
- Wide Analog-Input-Voltage Range VCC - VEE: 0V to 10V
- 45Ω (Typ) when vcc = 4.5V
- 35Ω (Typ) when vcc = 6V
- 30Ω (Typ) when VCC - VEE = 9V
- Fast Switching and Propagation Delay Times
- Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, I ≤ 1μA at VOL, VOH
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADG713BRUZ-REEL7#C207734ADI · TSSOP-16 | ADI | TSSOP-16 | 141 | ₹285.09 · 141 in stock | View |
 | ADG711BRU#C22426225ADI · TSSOP-16 | ADI | TSSOP-16 | 7 | ₹1,078.06 · 7 in stock | View |
 | ADG711BRUZ-REEL#C496493ADI · TSSOP-16 | ADI | TSSOP-16 | 1 | ₹938.95 · 1 in stock | View |
 | ADG711BRUZ-REEL7#C579095ADI · TSSOP-16 | ADI | TSSOP-16 | 1 | ₹910.48 · 1 in stock | View |
 | ADG711WBRUZ-REEL#C657585ADI · TSSOP-16 | ADI | TSSOP-16 | 7 | ₹783.89 · 7 in stock | View |
