TECH PUBLICDatasheet (PDF)

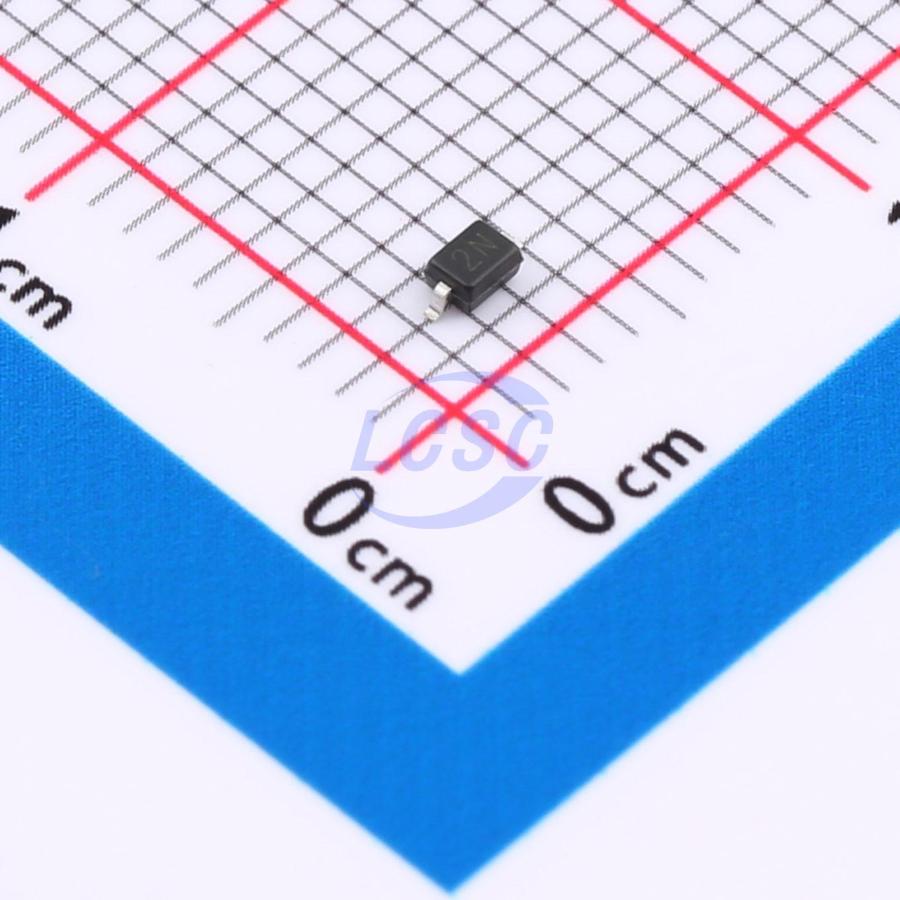

CDSOD323-T36SC
50VC 75VC Clamp 5A@8/20us Ipp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 36VWM 50VC 75VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CDSOD323-T36SC
- Store part #
- C23380852
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C23380852
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.64 | ₹464.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOD323-T36SC
₹57.90 for 10 + GST
Specifications
- Clamping Voltage
- 50V;75V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus
- Power Line Protection
- Hand Held Portable Applications
Key features
- 300 W peak pulse power (8/20 μs)
- Protects one data or power line
- Operating voltage: 36V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-5 (SURGE) 5A (8/20us)
