VBsemi ElecDatasheet (PDF)

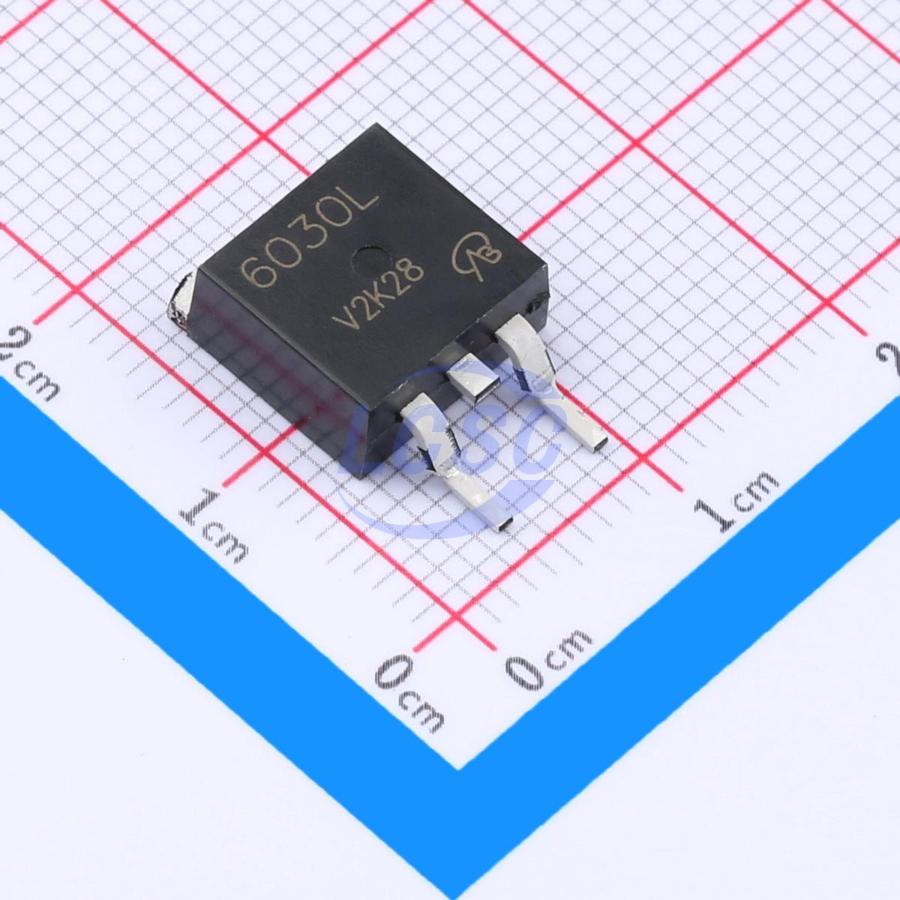

CEB6030L-VB
N-Channel 30V 70A 71W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)RoHSActive
MOSFET N-CH 30V 70A D2PAK(TO-263)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEB6030L-VB
- Store part #
- C5355686
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C5355686
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.87 | ₹63.87 |
| 10+ | ₹50.50 | ₹505.00 |
| 50+ | ₹42.12 | ₹2,106.00 |
| 100+ | ₹35.14 | ₹3,514.00 |
| 500+ | ₹31.94 | ₹15,970.00 |
| 800+ | ₹29.95 | ₹23,960.00 |
1 × ₹63.87
₹63.87
excl. GST
₹75.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEB6030L-VB
₹63.87 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 260pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.85nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
WNM6010 is an N-channel enhancement-mode MOSFET. Utilizing advanced trench technology and design, it delivers excellent RDS(ON) with low gate charge. The device is suitable for DC-DC conversion, power switching, and charging circuits. The standard product WNM6010 is RoHS compliant.
Applications
- DC/DC converter
- Power converter circuit
- Load/power switch for portable devices
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF3704SPBF-VB#C22389194VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹79.25 · 6 in stock | View |
 | IRF3707SPBF-VB#C29778838VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹65.75 · 1 in stock | View |
 | ISL9N310AS3ST-VB#C29779839VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹65.75 · 10 in stock | View |
 | CEB73A3G-VB#C4355098VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹61.68 · 3 in stock | View |
 | SUM85N03-06P-VB#C879114VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 3 | ₹74.46 · 3 in stock | View |
