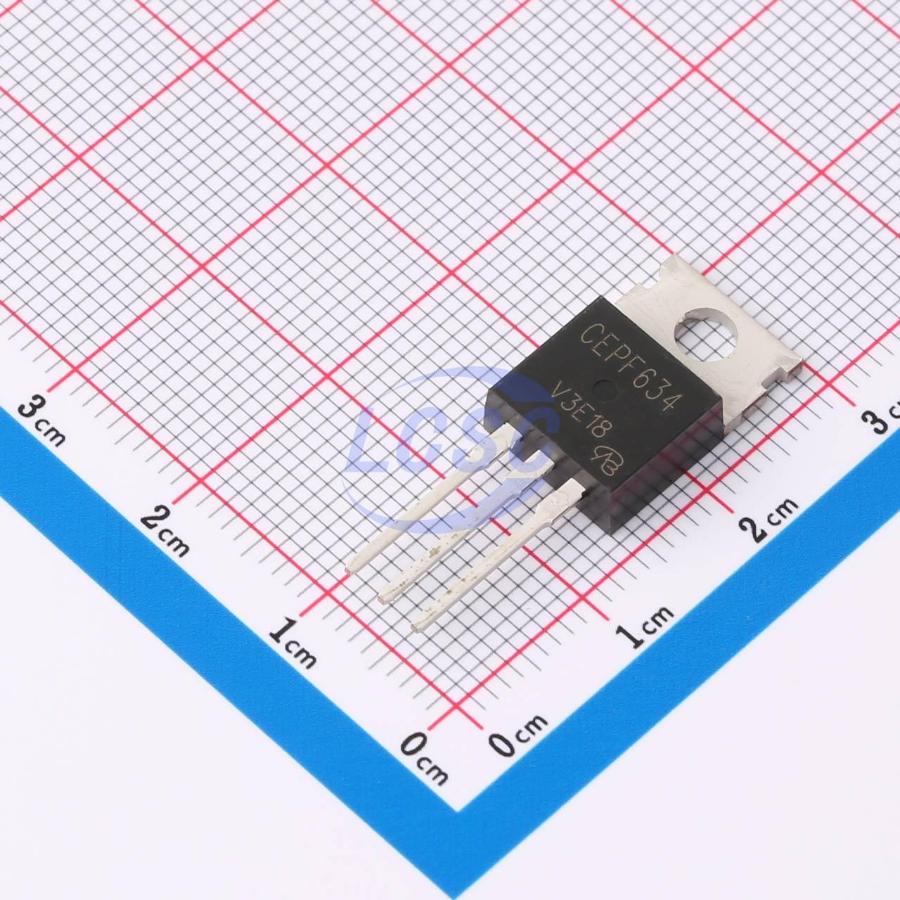

CEPF634-VB
N-Channel 250V 14A 125W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 250V 14A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEPF634-VB
- Store part #
- C7568988
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568988
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.56 | ₹128.56 |
| 10+ | ₹104.40 | ₹1,044.00 |
| 50+ | ₹92.42 | ₹4,621.00 |
| 100+ | ₹80.45 | ₹8,045.00 |
| 500+ | ₹73.32 | ₹36,660.00 |
| 1,000+ | ₹69.75 | ₹69,750.00 |
1 × ₹128.56
₹128.56
excl. GST
₹151.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEPF634-VB
₹128.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 14A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
