VBsemi ElecDatasheet (PDF)

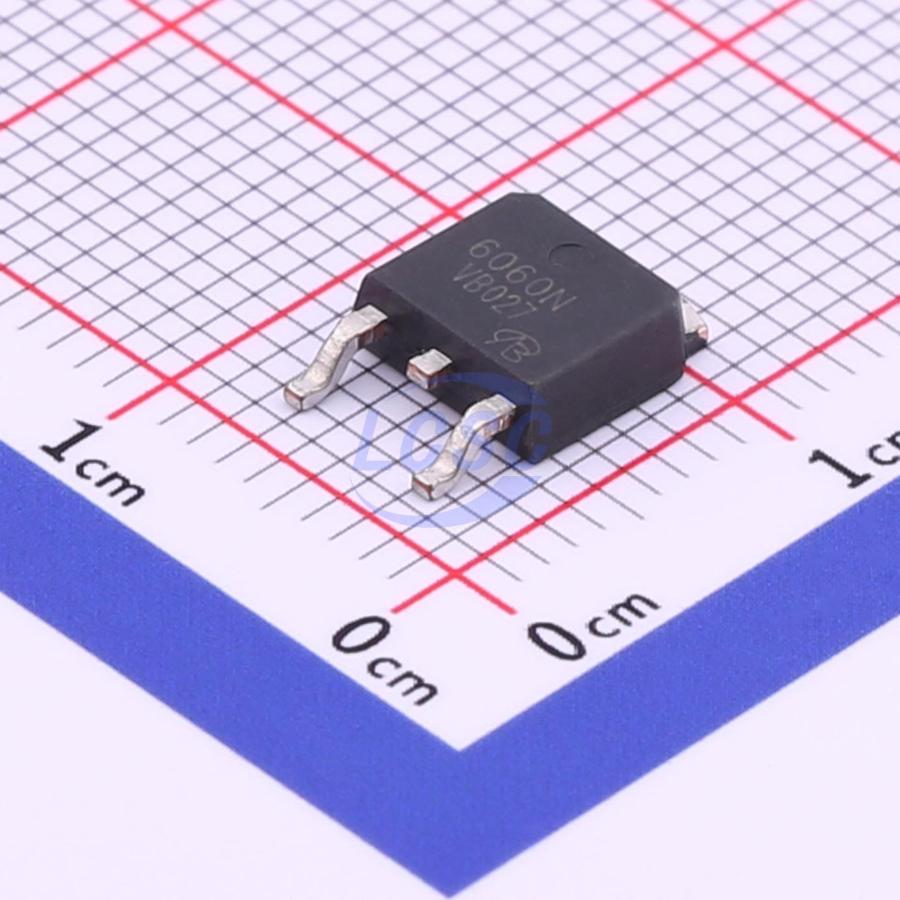

CEU6060N-VB
N-Channel 60V 45A 3W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEU6060N-VB
- Store part #
- C709936
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C709936
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.28 | ₹68.28 |
| 10+ | ₹54.20 | ₹542.00 |
| 30+ | ₹48.32 | ₹1,449.60 |
| 100+ | ₹40.76 | ₹4,076.00 |
| 500+ | ₹37.40 | ₹18,700.00 |
| 1,000+ | ₹35.30 | ₹35,300.00 |
1 × ₹68.28
₹68.28
excl. GST
₹80.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CEU6060N-VB
₹68.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Key features
- Trench Power MOSFET
- Junction temperature up to 175°C
- RoHS compliant
- Drain connected to heatsink
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HUF76409D3ST-VB#C19188126VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 33 | ₹67.01 · 33 in stock | View |
 | F16N06 TO252-VB#C19188182VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹69.07 · 40 in stock | View |
 | FQD20N06-VB#C725047VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 195 | ₹70.24 · 195 in stock | View |
 | SUD25N06-45L-E3-VB#C7463630VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 289 | ₹67.22 · 289 in stock | View |
 | STD30NF06T4-VB#C19188110VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 47 | ₹69.07 · 47 in stock | View |
