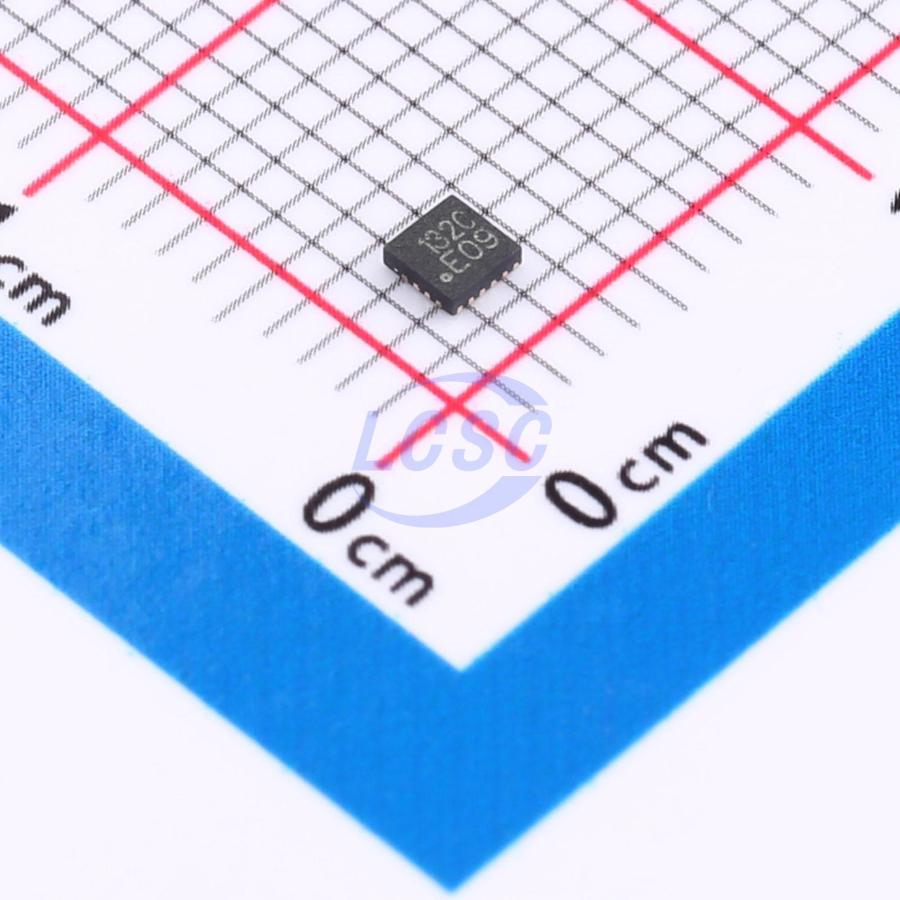

CH132C
Transceiver 480Mbps USB 2.0 QFN-20-EP(2x2) Interface Controllers
High-speed USB transceiver chip
- Manufacturer
- WCH
- Manufacturer part #
- CH132C
- Store part #
- C46061831
- Package / case
- QFN-20-EP(2x2)
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,400 in stock
#C46061831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.77 | ₹151.77 |
| 10+ | ₹126.19 | ₹1,261.90 |
| 30+ | ₹111.89 | ₹3,356.70 |
| 100+ | ₹96.05 | ₹9,605.00 |
| 500+ | ₹88.91 | ₹44,455.00 |
| 1,000+ | ₹85.65 | ₹85,650.00 |
1 × ₹151.77
₹151.77
excl. GST
₹179.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CH132C
₹151.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3.3V
- Features
- Power-on reset;Built-in clock generator;Low-power mode;Wake-up function
- Applications Function
- Transceiver
- Data Rate
- 480Mbps
- Quiescent Supply Current
- 400uA
- USB Protocol
- USB 2.0
- Current - Supply
- 27mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.016 g
Overview
CH132 is a high-speed USB transceiver chip (USB PHY) compliant with the ULPI interface standard, compatible with the USB 2.0 protocol specification and the UTMI+ Low Pin Interface (ULPI) 1.1 protocol specification. The chip supports transmission and reception of USB 2.0 high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) data, and can be used to expand USB host ports or device ports for MCUs or FPGAs equipped with a ULPI interface.
Key features
- USB 2.0 protocol specification compliant
- UTMI+ Low Pin Interface (ULPI) 1.1 protocol specification compliant
- 12-pin ULPI interface, supports 1.8V ~ 3.3V I/O levels, operating clock at 60MHz
- Supports USB Host and USB Device modes
- Supports USB high-speed, full-speed, and low-speed transfer
- Supports 3-wire or 6-wire full-speed/low-speed serial mode
- Supports D+ and D- signal line swap mode
- Integrated 3.3V LDO, supports 3.3V or 5V supply input
- Integrated POR circuit, clock oscillator, and PLL
- Integrated impedance matching resistors and oscillator capacitors, simplified peripheral circuitry
- Supports ULPI input clock and output clock modes
- USB pins with 6KV enhanced ESD protection
- Operating temperature range: -40 ~ 85°C
- Available in QFN24, QFN32, and other package options
