WCH

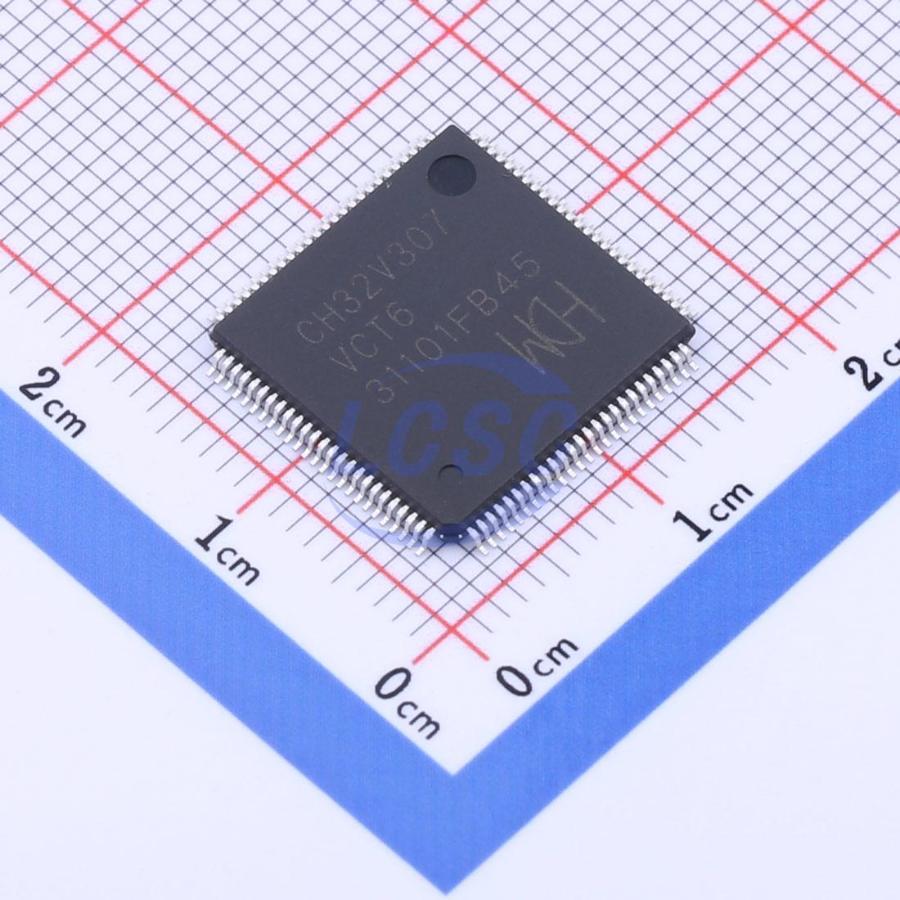

CH32V307VCT6

RISC-V4F 32 Bit 144MHz LQFP-100(14x14) Microcontrollers

LQFP-100(14x14)RoHSActive

Industrial-grade general-purpose microcontroller based on Qingke RISC-V core

Manufacturer: WCH
Manufacturer part #: CH32V307VCT6
Store part #: C2943979
Package / case: LQFP-100(14x14)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,014 in stock

#C2943979

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹453.59	₹453.59
10+	₹391.78	₹3,917.80
30+	₹355.00	₹10,650.00
90+	₹317.77	₹28,599.30
540+	₹300.59	₹1,62,318.60
900+	₹292.97	₹2,63,673.00
1,800+	₹289.49	₹5,21,082.00

Quantity (min 1)

1 × ₹453.59

₹453.59

excl. GST

₹535.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 90 per tray

CH32V307VCT6

₹453.59 for 1 + GST

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Number of I/O: 80
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3.3V
Program Memory Type: FLASH
Program Storage Size: 256KB
CPU Core: RISC-V4F
Core Size: 32 Bit
CPU Maximum Speed: 144MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 90 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 3.4 g

Overview

CH32V series products are industrial-grade general-purpose enhanced MCU based on 32-bit RISC-V instruction set architecture, which are divided into general, connected, wireless and other categories according to functional resources. They extend each other in terms of package category, peripheral resources and quantity, pin number and device characteristics, but maintain mutual compatibility in software, function and hardware pin configuration. it provides freedom and convenience for users to carry out product iteration and rapid application in product development.

Key features

Core:
QingKe 32-bit RISC-V4F core with multiple instruction set combinations
Fast programmable interrupt controller + hardware interrupt stack
Branch prediction, conflict handling mechanism
Single cycle multiplication, hardware division, hardware FPU
System main frequency 144MHz, zero wait
Memory:
Available with up to 128KB volatile data storage area SRAM
Available with 480KB program memory CodeFlash (zero-wait application area + non-zero-wait data area)
28KB BootLoader
128B non-volatile system configuration memory
128B user-defined memory
