WCH

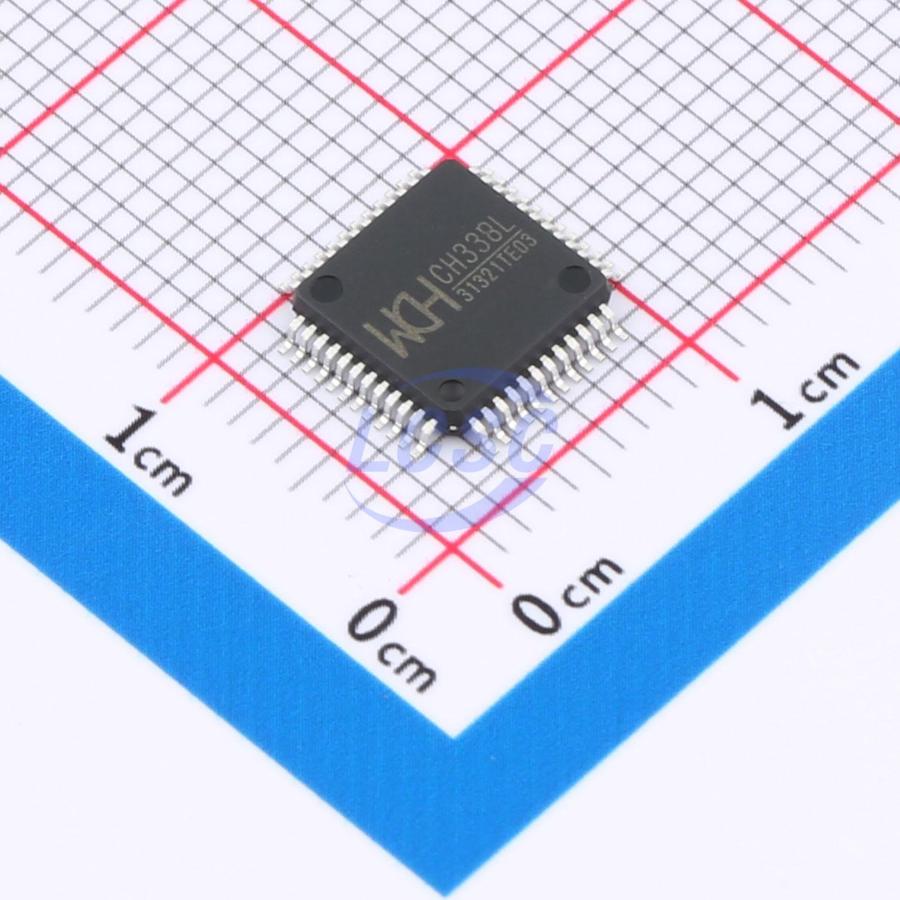

CH338L

7 Transceiver 480Mbps USB 2.0 LQFP-48(7x7) Interface Controllers

LQFP-48(7x7)RoHSActive

7-port USB HUB controller chip

Manufacturer: WCH
Manufacturer part #: CH338L
Store part #: C42380708
Package / case: LQFP-48(7x7)
Category: Interface Controllers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

774 in stock

#C42380708

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
1+	₹222.53	₹222.53
10+	₹188.22	₹1,882.20
30+	₹166.95	₹5,008.50
250+	₹145.03	₹36,257.50
500+	₹135.04	₹67,520.00
1,000+	₹130.70	₹1,30,700.00

Quantity (min 1)

1 × ₹222.53

₹222.53

excl. GST

₹262.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

CH338L

₹222.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Voltage - Supply: 3.3V;5V
Number of ports: 7
Features: Power-on reset;Built-in clock generator
Applications Function: Transceiver
Data Rate: 480Mbps
Quiescent Supply Current: 280uA
USB Protocol: USB 2.0
Current - Supply: 140mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.539 g

Overview

CH338 is a 7-port USB hub controller chip compliant with the USB 2.0 specification. Its upstream port supports USB 2.0 High-Speed and Full-Speed modes, while the downstream ports support High-Speed 480Mbps, Full-Speed 12Mbps, and Low-Speed 1.5Mbps. The chip supports both the low-cost STT mode and the high-performance MTT mode, providing each downstream port with an independent transaction translator for full-bandwidth concurrent transfers. Select variants also feature a built-in USB PD PHY, supporting up to 100W fast charging. Designed to industrial-grade standards with a simplified peripheral circuit, the chip is suitable for computer motherboards, industrial control motherboards, peripherals, and embedded systems.

Key features

7 USB 2.0 downstream ports, backward compatible with USB 1.1
Per-port independent power control or global power control
Per-port independent over-current detection or global over-current detection
High-performance MTT mode with dedicated transaction translator per port, enabling full-bandwidth concurrent transfers — total bandwidth is 7× that of STT mode
Port status LED indicators
Configurable via external or internal EEPROM: compound device support, non-removable device, custom VID/PID, port configuration, and USB vendor/product/serial number string descriptors
Chip parameters configurable via SMBus interface
Built-in information memory for bulk customization of vendor/product information and configuration for industry-specific requirements
Proprietary USB PHY and low-power technology; supports self-powered or bus-powered mode
Self-powered or bus-powered mode selectable via I/O pins
Crystal oscillator with integrated capacitors; supports external clock input; built-in PLL provides 480 MHz clock for USB PHY
Crystal-free mode supported in select applications, eliminating external crystal and capacitors
1.5 KΩ pull-up resistor integrated on upstream port; required pull-down resistors integrated on downstream ports — simplified peripheral circuitry
Select models include integrated LDO regulator, converting USB bus voltage to 3.3 V operating supply
Select models include integrated USB PD PHY, supporting 100 W fast charging
USB interface pins with 6 KV enhanced ESD protection, compliant with Class 3A
Industrial operating temperature range: -40 ~ 85℃
Available in compact, cost-effective, easy-to-assemble packages: QFN64X9, LQFP48, QFN32, and more
