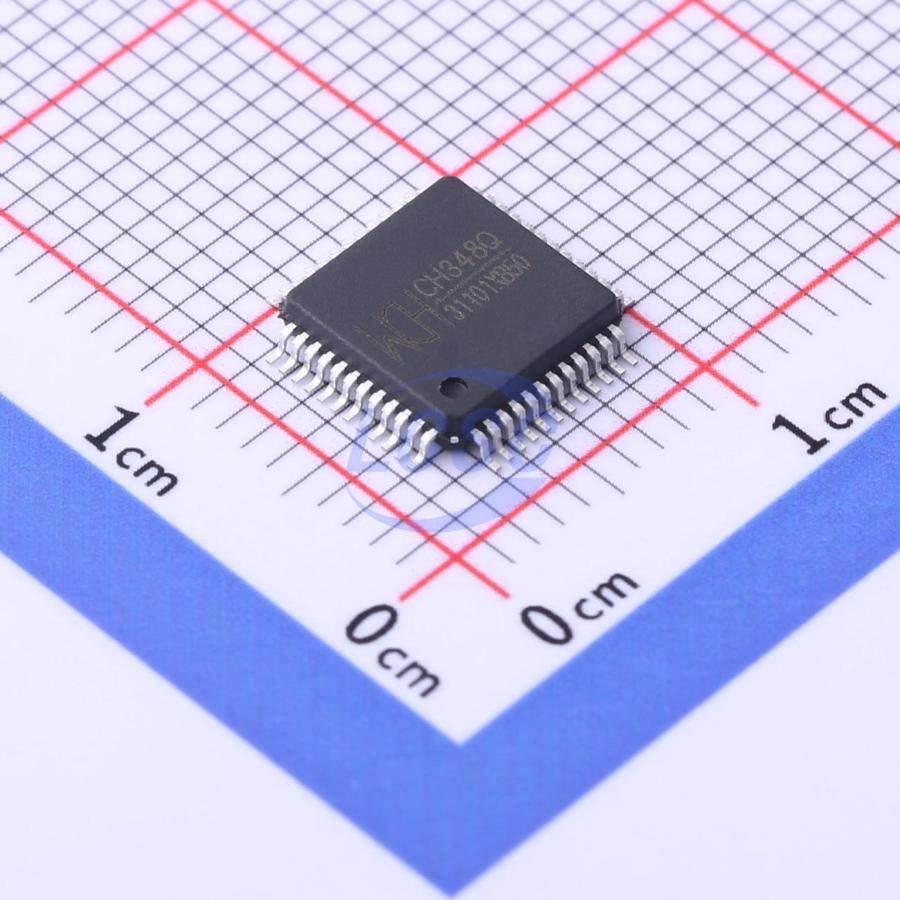

CH348Q
8 USB to UART 6Mbps USB 2.0 LQFP-48(7x7) Interface Controllers
USB to 8 Serial Port Chip CH348
- Manufacturer
- WCH
- Manufacturer part #
- CH348Q
- Store part #
- C2979161
- Package / case
- LQFP-48(7x7)
- Category
- Interface Controllers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,456 in stock
#C2979161
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹751.49 | ₹751.49 |
| 10+ | ₹666.06 | ₹6,660.60 |
| 30+ | ₹583.89 | ₹17,516.70 |
| 250+ | ₹525.35 | ₹1,31,337.50 |
| 500+ | ₹504.54 | ₹2,52,270.00 |
| 1,000+ | ₹495.42 | ₹4,95,420.00 |
1 × ₹751.49
₹751.49
excl. GST
₹886.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per tray
CH348Q
₹751.49 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V
- Number of ports
- 8
- Features
- Programmable baud rate;FIFO buffer;Hardware flow control support;Power-on reset;Built-in clock generator
- Applications Function
- USB to UART
- Data Rate
- 6Mbps
- Quiescent Supply Current
- 360uA
- USB Protocol
- USB 2.0
- Current - Supply
- 55mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
CH348 is a high-speed USB bus converter chip that implements USB to eight asynchronous serial ports UART0/1/2/3/4/5/6/7, used to expand asynchronous serial ports for computers, or to directly upgrade ordinary serial port devices or MCUs to USB bus.
Applications
- USB to 8-Channel TTL Serial
Key features
- 480Mbps high-speed USB device interface; only crystal and capacitors required as external components.
- Built-in firmware emulating standard serial ports, enabling upgrade of existing serial peripherals or addition of extra serial ports via USB.
- Fully compatible with serial port applications under Windows OS on the host side; no modifications required.
- Hardware full-duplex serial port with independent built-in TX/RX buffers; communication baud rate supports 1200bps ~ 6Mbps.
- Serial port supports 8 data bits, odd/even/no parity, and 1 or 2 stop bits.
- Each serial port features a built-in 2048-byte RX FIFO and 1024-byte TX FIFO.
- Supports common MODEM control signals: RTS, DTR, DCD, RI, DSR, CTS.
- Supports CTS and RTS hardware automatic flow control.
- Half-duplex support with TNOW signal indicating serial transmission status, usable for RS485 TX/RX switching control.
- Supports up to 48 GPIO input/output lines.
- Supports RS232, RS485, RS422, and other interfaces via external level-shifting devices.
- CH348L serial port I/O independently powered; supports 3.3V, 2.5V, and 1.8V supply voltages.
- Built-in EEPROM for configuring VID, PID, maximum current, manufacturer and product information strings, and other parameters.
- Single 3.3V power supply.
- Available in LQFP48 and LQFP100 lead-free packages, RoHS compliant.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CH9104L#C22439562WCH · LQFP-48(7x7) | WCH | LQFP-48(7x7) | 316 | ₹375.30 · 316 in stock | View |
 | CH344L#C2887250WCH · LQFP-48(7x7) | WCH | LQFP-48(7x7) | 1,311 | ₹376.83 · 1,311 in stock | View |
 | CH9344Q#C49118550WCH · LQFP-48(7x7) | WCH | LQFP-48(7x7) | 216 | ₹497.16 · 216 in stock | View |
 | CH9350L#C109472WCH · LQFP-48(7x7) | WCH | LQFP-48(7x7) | 398 | ₹525.34 · 398 in stock | View |
