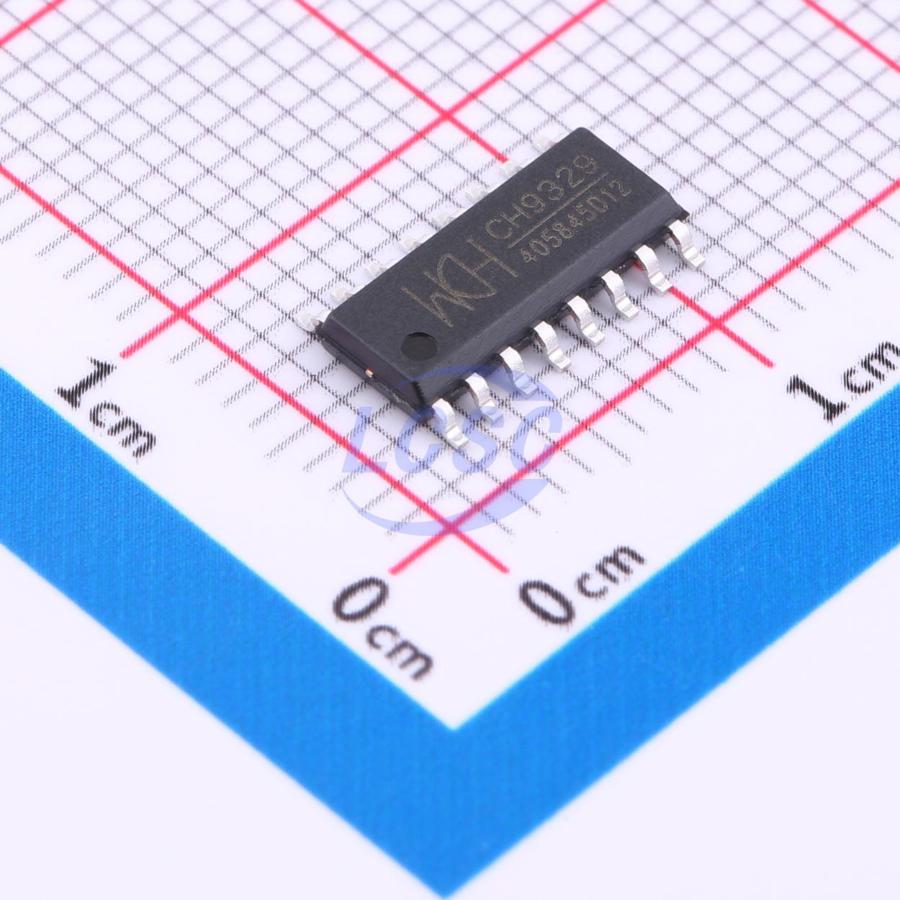

CH9329
USB to HID 12Mbps USB 2.0 SOP-16 Interface Controllers
Serial Port to HID Keyboard and Mouse Chip
- Manufacturer
- WCH
- Manufacturer part #
- CH9329
- Store part #
- C2838834
- Package / case
- SOP-16
- Category
- Interface Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
987 in stock
#C2838834
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.90 | ₹137.90 |
| 10+ | ₹112.10 | ₹1,121.00 |
| 50+ | ₹99.30 | ₹4,965.00 |
| 100+ | ₹86.51 | ₹8,651.00 |
| 500+ | ₹78.71 | ₹39,355.00 |
| 1,000+ | ₹74.80 | ₹74,800.00 |
1 × ₹137.90
₹137.90
excl. GST
₹162.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
CH9329
₹137.90 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3.3V;5V
- Features
- Programmable baud rate;Power-on reset;Wake-up function;Hardware flow control support;Built-in clock generator
- Applications Function
- USB to HID
- Data Rate
- 12Mbps
- Quiescent Supply Current
- 11mA
- USB Protocol
- USB 2.0
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.313 g
Overview
CH9329 is a UART to standard USB HID device (keyboard, mouse, custom HID) chip. According to different operating modes, it can be identified as the standard USB keyboard device, USB mouse device or custom HID device on the computer. CH9329 receives serial port data sent from the client and according to the HID device specification, the data will be packaged and then transmitted to the computer via USB port. Though the provided computer software, users can also configure the chip operating mode, serial communication mode, serial communication baud rate, various timeout periods, VID, PID, and various USB string descriptors.
Key features
- Supports 12Mbps full-speed USB transmission, USB 2.0 compatible, built-in crystal oscillator.
- Default serial baud rate is 9600bps, which supports various common baud rates.
- Supports 5V and 3.3V power voltage.
- Multiple chip operating modes to adapt to different application requirements.
- Flexible switching among multiple serial communication modes.
- Supports normal keyboard and multimedia keyboard function, and supports full keyboard function.
- Supports absolute mouse and relative mouse functions.
- Supports custom HID device functions, which can be used for pure data transmission.
- Supports ASCII code characters input and section-position code Chinese characters input.
- Supports remote computer wake-up function.
- Supports to configure VID, PID, and various USB string descriptors of chip.
- Supports to configure default baud rate of chip.
- Supports to configure communication address of chip to realize multiple chips hanged on the same serial port.
- Supports to configure "Enter" character.
- Supports to configure filter string to filter invalid characters conveniently.
- Complies with USB related specifications and HID device related specifications.
- RoHS compliant SOP-16 lead-free package.
