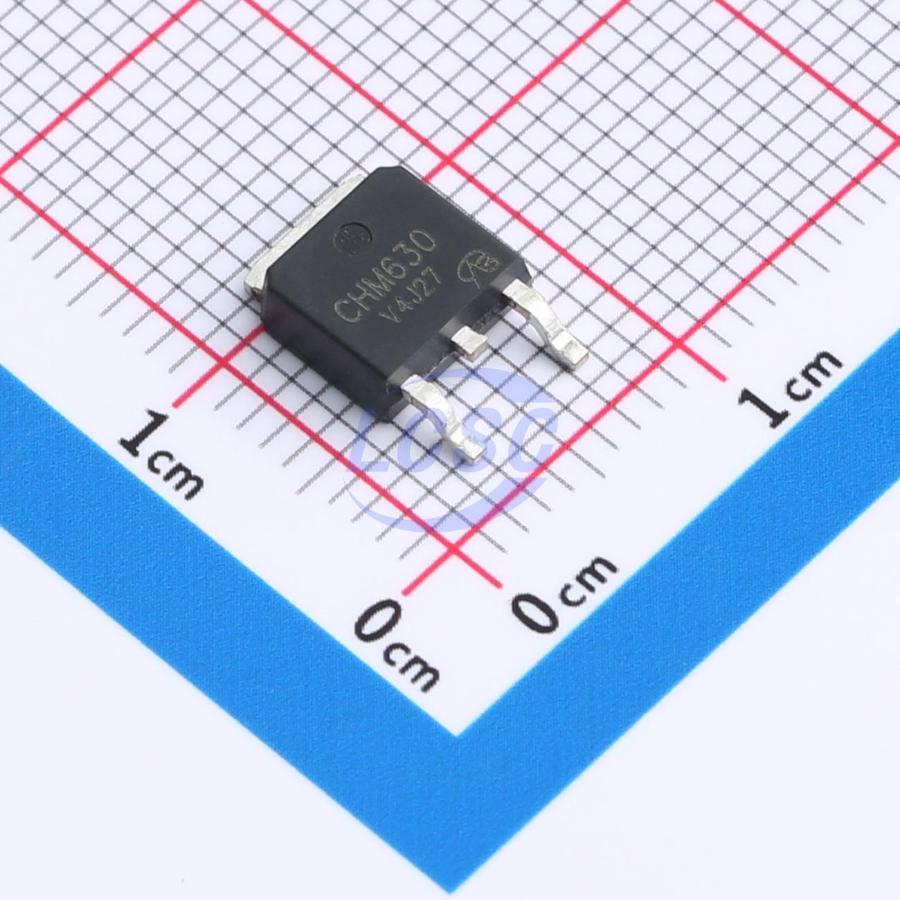

CHM630PAPT-VB
N-Channel 200V 10A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 10A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CHM630PAPT-VB
- Store part #
- C41370132
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C41370132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.18 | ₹125.18 |
| 10+ | ₹107.33 | ₹1,073.30 |
| 30+ | ₹98.18 | ₹2,945.40 |
| 100+ | ₹89.47 | ₹8,947.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹125.18
₹125.18
excl. GST
₹147.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CHM630PAPT-VB
₹125.18 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 245mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
Applications
- Primary Side Switch
Key features
- Trench Power MOSFET
- 175°C Junction Temperature
- PWM Optimized
- 100% Rg Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H5N2005DSTL-E-VB#C19190213VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹93.72 · 30 in stock | View |
 | IRFR220NTRLPBF-VB#C45662563VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹106.46 · 5 in stock | View |
 | 7N20-VB#C5137444VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹94.95 · 18 in stock | View |
 | FR9N20D-VB#C693241VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 304 | ₹93.93 · 304 in stock | View |
 | FQD10N20L-VB#C709974VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 1 | ₹100.59 · 1 in stock | View |
