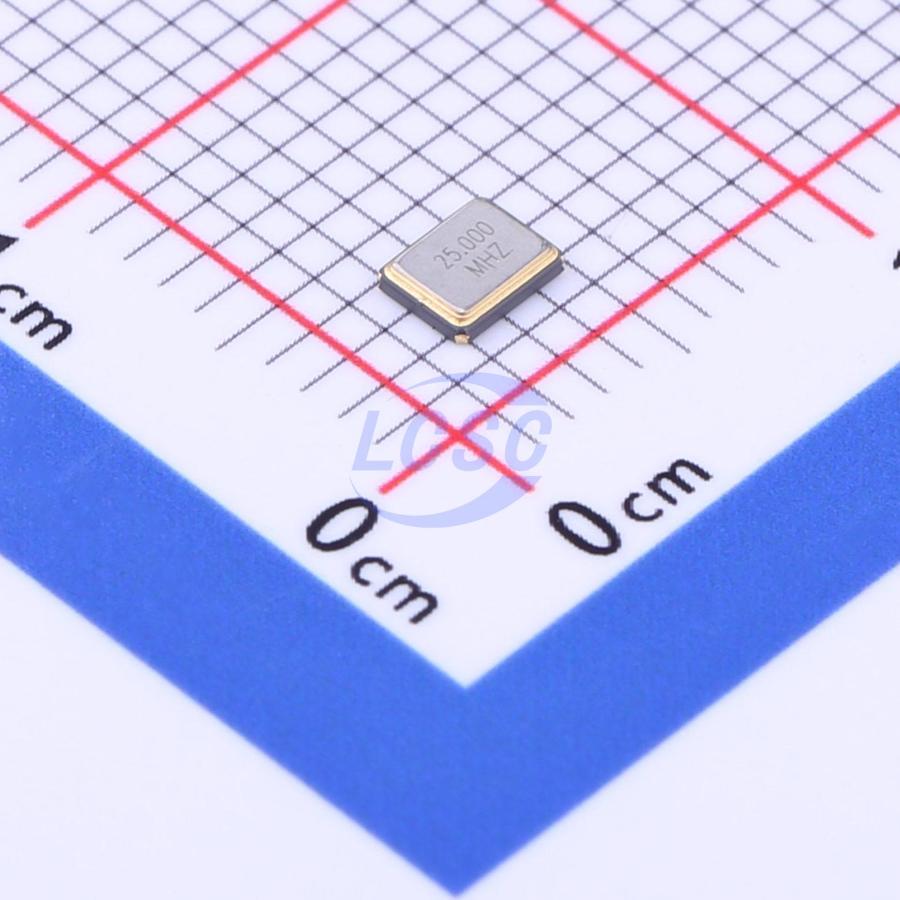

JSCJ
CJ13-250001010B20
±20ppm 10pF ±10ppm SMD3225-4P Crystals RoHS
SMD3225-4PROHS CompliantActive
SMCE3225 4pads Crystal Resonator
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,565 in stock
#C712849
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.79 | ₹68.95 |
| 50+ | ₹10.86 | ₹543.00 |
| 150+ | ₹9.41 | ₹1,411.50 |
| 500+ | ₹8.31 | ₹4,155.00 |
| 3,000+ | ₹7.44 | ₹22,320.00 |
| 6,000+ | ₹6.99 | ₹41,940.00 |
5 × ₹13.79
₹68.95
excl. GST
₹81.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ13-250001010B20
₹68.95 for 5 + GST
Specifications
- Frequency Stability
- ±20ppm
- Operating Temperature
- -40℃~+85℃
- Load Capacitance
- 10pF
- Equivalent Series Resistance(ESR)
- 60Ω
- Normal temperature Frequency Tolerance
- ±10ppm
- Frequency
- 25MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
This specification applies to the RoHS/SONY compliance quartz crystal unit with a frequency of 25MHz which will be used in crystal oscillator applications.
Applications
- crystal oscillator applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ13-250001010A20#C712848JSCJ · SMD3225-4P | JSCJ | SMD3225-4P | 675 | ₹12.71 · 675 in stock | View |
