JSCJDatasheet (PDF)
CJ431 ±0.5%

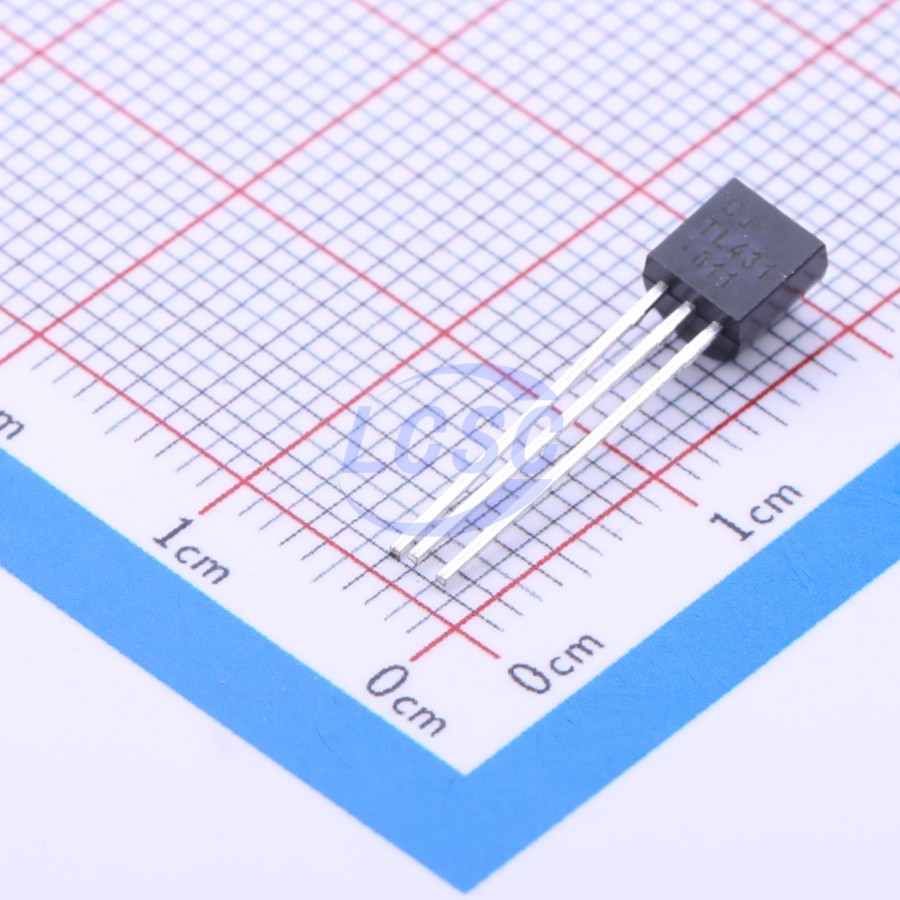

Shunt Voltage Reference IC Adjustable 2.5V~36V ±0.5% 100mA TO-92-3
TO-92-3ROHS CompliantActive
IC VREF SHUNT ADJ ±0.5% TO-92-3
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ431 ±0.5%
- Store part #
- C154948
- Package / case
- TO-92-3
- Category
- Voltage Reference
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,410 in stock
#C154948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.07 | ₹80.70 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.69 | ₹1,707.00 |
| 1,000+ | ₹5.11 | ₹5,110.00 |
| 5,000+ | ₹4.63 | ₹23,150.00 |
| 10,000+ | ₹4.39 | ₹43,900.00 |
10 × ₹8.07
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
CJ431 ±0.5%
₹80.70 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.213 g
Overview
The CJ431/ CD431is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature. The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- Shunt Regulator
- High - Current Shunt Regulator
- Precision Current Limiter
