JSCJDatasheet (PDF)

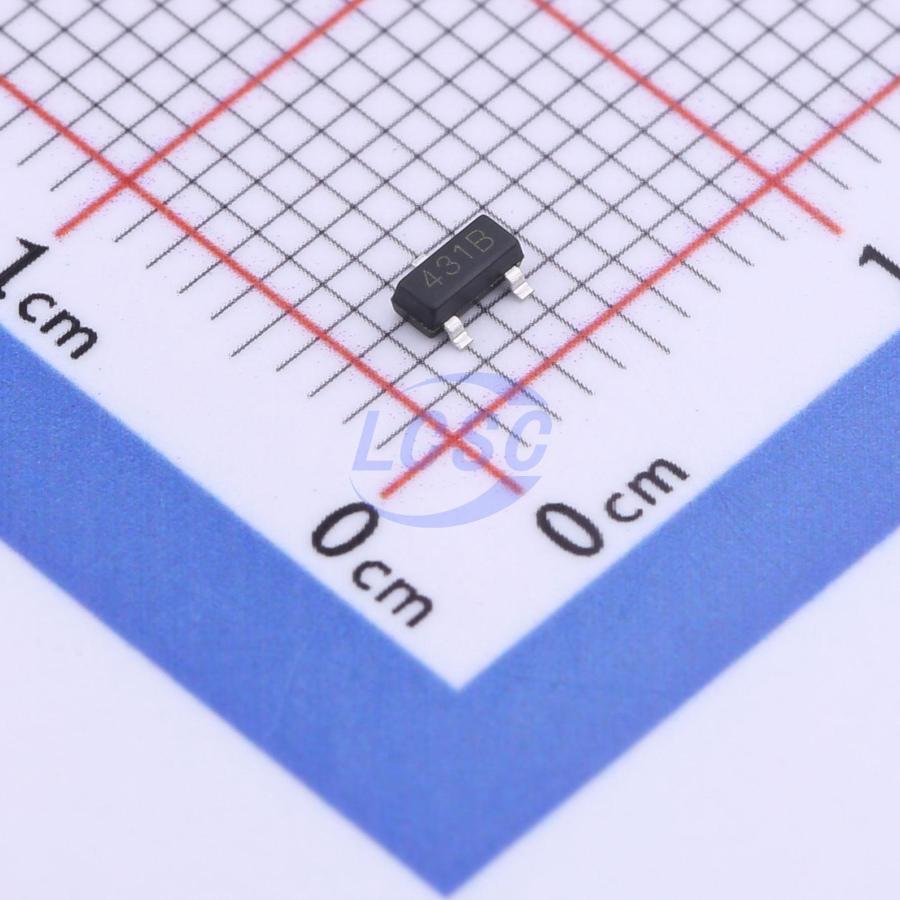

CJ431B
2.483V~36V ±0.5% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable reference source in SOT-23 package
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ431B
- Store part #
- C3031881
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,420 in stock
#C3031881
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.95 | ₹119.00 |
| 200+ | ₹4.79 | ₹958.00 |
| 600+ | ₹4.15 | ₹2,490.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 9,000+ | ₹3.27 | ₹29,430.00 |
| 21,000+ | ₹3.08 | ₹64,680.00 |
20 × ₹5.95
₹119.00
excl. GST
₹140.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ431B
₹119.00 for 20 + GST
Specifications
- Output Voltage
- 2.483V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 80uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The CJ431 B is a three-terminal adjustable shunt regulators with a specified thermal stability. The output voltage may be set to any value between Vref (approx. 2.5V) and 36V with two external resistors. The active output circuitry provides a very sharp turn on characteristic making these devices an excellent replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- On-wafer V ref trimming ±0.3%
- 95% chips after packaging have Vref accuracy ±0.5%
- Low Dynamic output impedance 0.1Ω (Typ)
- Adjustable output voltage
- Fast turn-on response
- Sink current capability of 0.1mA to 100mA
- Low output noise
- Industrial temperature range
- Improved temperature compensation
- Excellent temperature coefficient 25ppm/°C
- Electrostatic discharge voltage 2.5kV
