JSCJDatasheet (PDF)

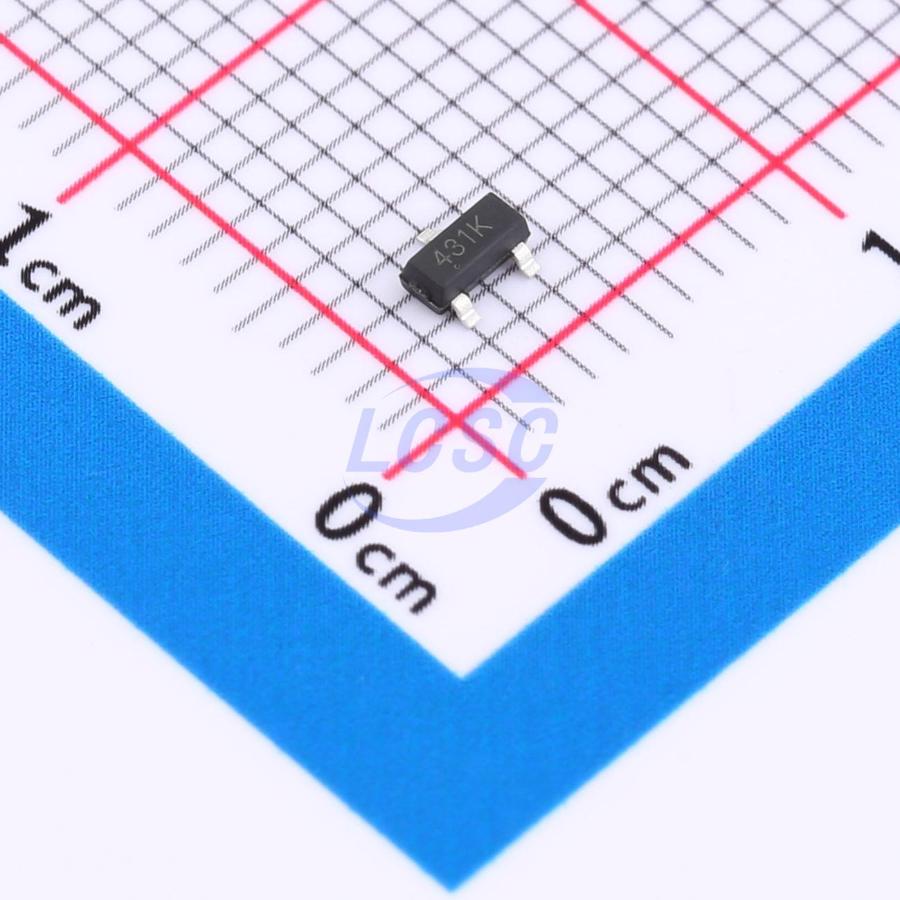

CJ431K
2.5V~36V ±0.5% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
SOT-23 Encapsulate Adjustable Reference Source
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ431K
- Store part #
- C67383
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,250 in stock
#C67383
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.10 | ₹81.00 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.72 | ₹1,716.00 |
| 3,000+ | ₹5.12 | ₹15,360.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.41 | ₹39,690.00 |
10 × ₹8.10
₹81.00
excl. GST
₹95.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ431K
₹81.00 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The CJ431K is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
