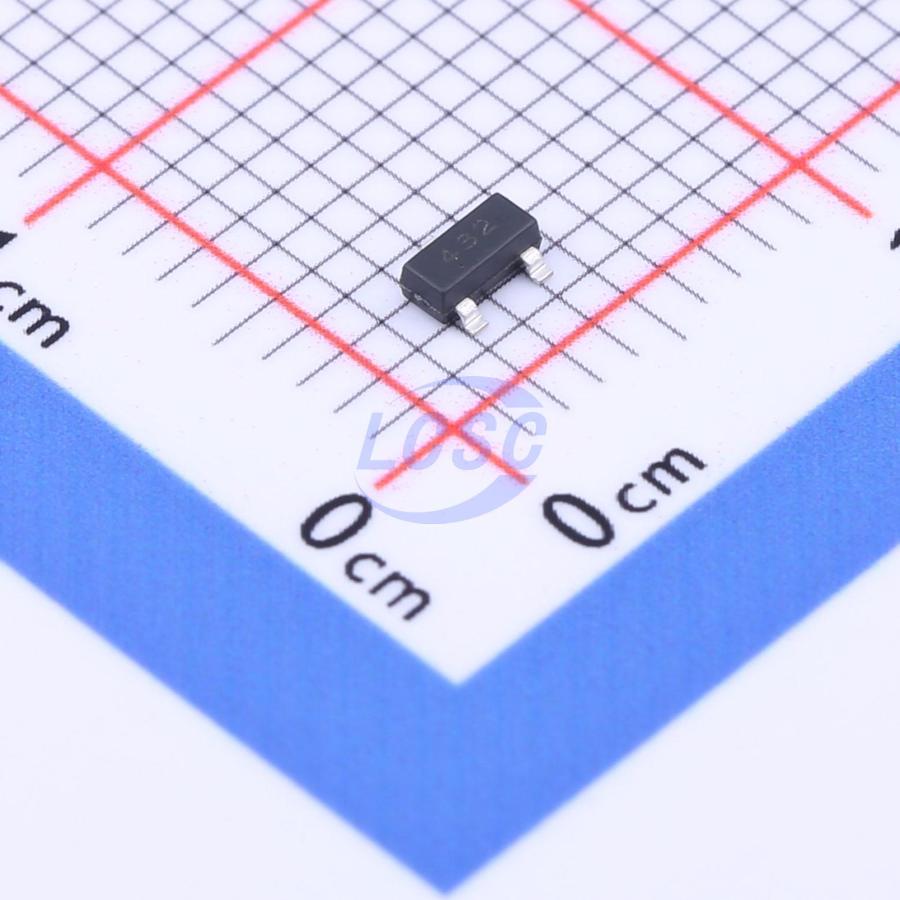

CJ432
1.2214V~18V ±1.5% 1.25V~15V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable reference source in SOT-23 package
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ432
- Store part #
- C2910208
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,310 in stock
#C2910208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.91 | ₹79.10 |
| 100+ | ₹6.39 | ₹639.00 |
| 300+ | ₹5.64 | ₹1,692.00 |
| 3,000+ | ₹5.07 | ₹15,210.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹7.91
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ432
₹79.10 for 10 + GST
Specifications
- Output Voltage
- 1.2214V~18V
- Tolerance
- ±1.5%
- Voltage - Supply
- 1.25V~15V
- Minimum Cathode Current for Regulation
- 100uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The CJ432 is a three-terminal Shunt Voltage Reference providing a highly accurance 1.24V. The CJ432 thermal stability and wide operating current, makes is sritable for all variety of applications that are looking for a low cost solution with high performance.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- Low dynamic output impedance
- The effective temperature compensation in the working range of full temperature
- Low output noise voltage
- Fast on -state response
- Sink current capability of 0.1mA to 100mA
