JSCJ

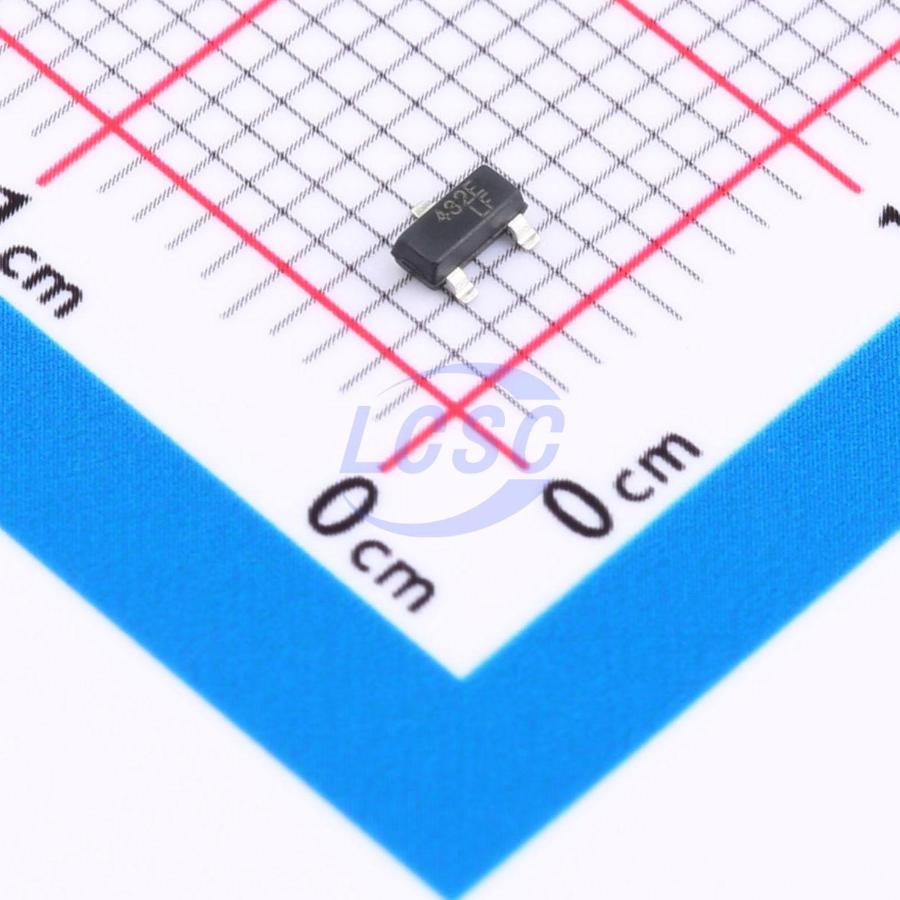

CJ432E-N3A-ARG

Shunt Voltage Reference IC Adjustable 1.244V~18V ±0.5% 100mA SOT-23

SOT-23ROHS CompliantActive

Adjustable Precision Zener Shunt Regulators, Voltage References

Manufacturer: JSCJ
Manufacturer part #: CJ432E-N3A-ARG
Store part #: C47089429
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,510 in stock

#C47089429

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.81	₹78.10
100+	₹6.34	₹634.00
300+	₹5.60	₹1,680.00
3,000+	₹5.05	₹15,150.00
6,000+	₹4.62	₹27,720.00
9,000+	₹4.39	₹39,510.00

Quantity (min 10, multiples of 10)

10 × ₹7.81

₹78.10

excl. GST

₹92.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CJ432E-N3A-ARG

₹78.10 for 10 + GST

Specifications

Output Voltage: 1.244V~18V
Tolerance: ±0.5%
Minimum Cathode Current for Regulation: 90uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

CJ432E is a three-terminal adjustable precision Zener shunt voltage regulator with guaranteed thermal stability over the full operating range. It features sharp turn-on characteristics, low temperature drift, and low output impedance. The output voltage can be set to any value between the reference voltage and the maximum cathode voltage by selecting two external resistors configured as a voltage divider network, making it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable voltage regulators.

Applications

Adjustable voltage and current reference
Comparator with integrated reference
Secondary-side regulation for flyback switching power supplies
Voltage monitoring
Zener diode replacement

Key features

Adjustable output voltage: reference voltage to 18 V
Reference voltage tolerance at 25℃: ±0.5% or ±1.0% grades available
Sink current capability: 0.1 ~ 100mA
Excellent temperature performance: operating temperature TA: -40 ~ 125℃, low drift: 6mV (typ), temperature coefficient: 30 ppm/℃
Low dynamic output resistance: 0.07Ω (typ)
Minimum cathode current: 90µA (max)
Fast turn-on response
Low output noise
High stability with capacitive loads
