JSCJ

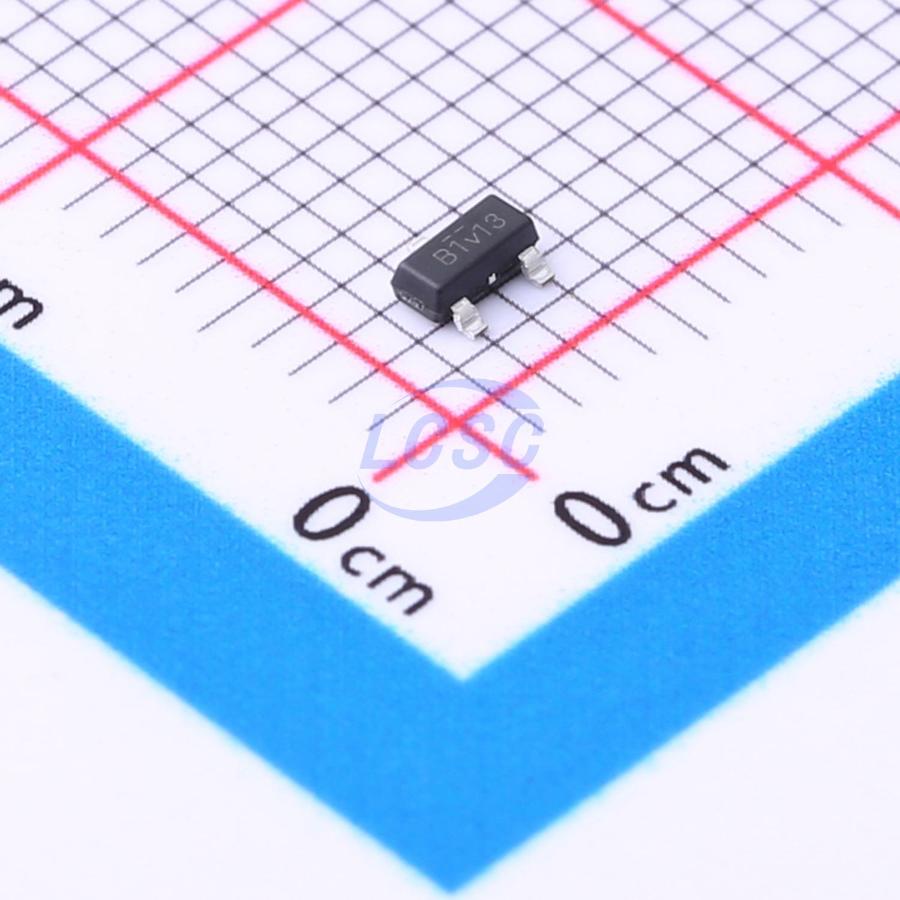

CJ9107A30K

300kHz Boost Fixed 3V SOT-23 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23ROHS CompliantActive

Synchronous Step-Up DC/DC Converter with PFM Control

Manufacturer: JSCJ
Manufacturer part #: CJ9107A30K
Store part #: C2829447
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,685 in stock

#C2829447

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
5+	₹14.05	₹70.25
50+	₹10.97	₹548.50
150+	₹9.42	₹1,413.00
500+	₹8.26	₹4,130.00
3,000+	₹7.33	₹21,990.00
6,000+	₹6.87	₹41,220.00

Quantity (min 5, multiples of 5)

5 × ₹14.05

₹70.25

excl. GST

₹82.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CJ9107A30K

₹70.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 300kHz
Number of Outputs: 1
Function: Boost
Output Type: Fixed
Topology: Boost
Operating Voltage: 900mV~5V
Switch tube (built-in/external): Built-in
Output Voltage: 3V
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The CJ9107 Series is a Synchronous step-up DC/DC Converter with PFM Control. With the CJ9107 Series, a step-up switching DC/DC converter can be configured by using an external coil, capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
