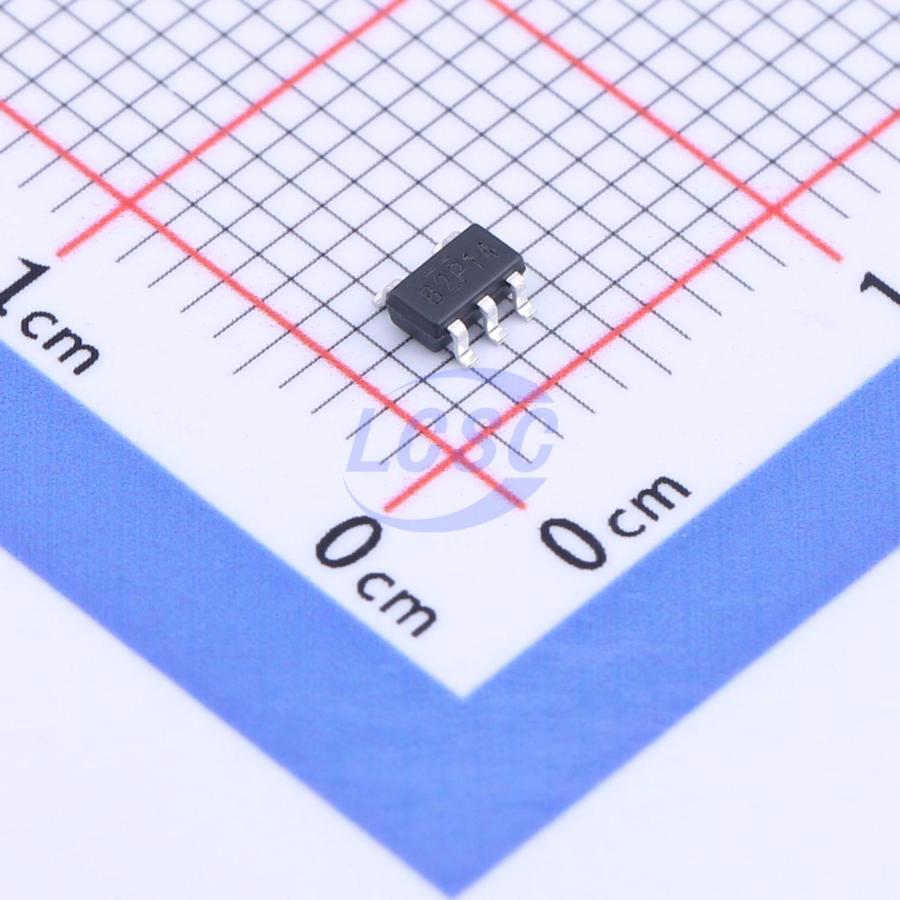

JSCJ

CJ9107B50T5

300kHz Boost Fixed 5V SOT-23-5L Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5LROHS CompliantActive

Synchronous Step-Up DC/DC Converter with PFM Control

Manufacturer: JSCJ
Manufacturer part #: CJ9107B50T5
Store part #: C2829449
Package / case: SOT-23-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,665 in stock

#C2829449

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹15.93	₹79.65
50+	₹12.44	₹622.00
150+	₹10.70	₹1,605.00
500+	₹9.39	₹4,695.00
3,000+	₹8.35	₹25,050.00
6,000+	₹7.82	₹46,920.00

Quantity (min 5, multiples of 5)

5 × ₹15.93

₹79.65

excl. GST

₹93.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CJ9107B50T5

₹79.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 300kHz
Number of Outputs: 1
Function: Boost
Output Type: Fixed
Topology: Boost
Operating Voltage: 900mV~5V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

The CJ9107 Series is a Synchronous step-up DC/DC Converter with PFM Control. With the CJ9107 Series, a step-up switching DC/DC converter can be configured by using an external coil, capacitor. The built-in MOSFET is turned off by a protection circuit when the voltage at the LX pin exceeds the limit to prevent it from being damaged.
