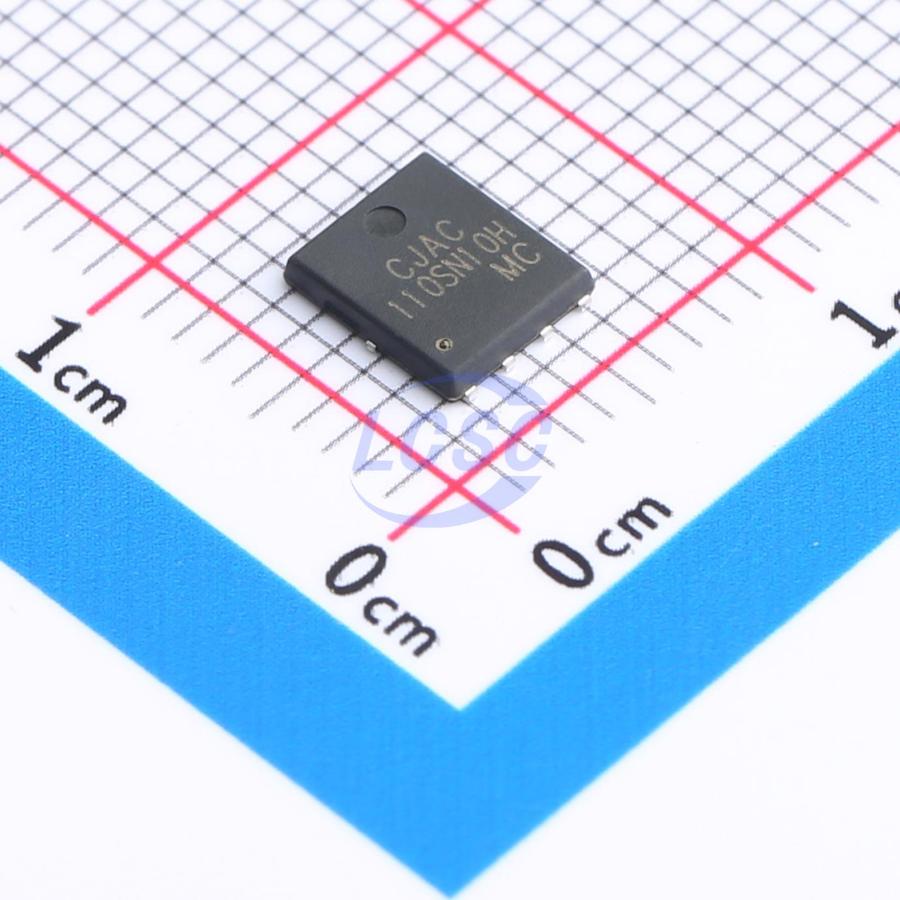

CJAC110SN10H
N-Channel 100V 110A 130W Surface Mount PDFNWB5x6-8L
PDFNWB5x6-8LROHS CompliantActive
MOSFET N-CH 100V 110A PDFNWB5x6-8L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJAC110SN10H
- Store part #
- C19267745
- Package / case
- PDFNWB5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,224 in stock
#C19267745
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.92 | ₹71.92 |
| 10+ | ₹63.23 | ₹632.30 |
| 30+ | ₹58.89 | ₹1,766.70 |
| 100+ | ₹54.76 | ₹5,476.00 |
| 500+ | ₹52.15 | ₹26,075.00 |
| 1,000+ | ₹50.84 | ₹50,840.00 |
1 × ₹71.92
₹71.92
excl. GST
₹84.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJAC110SN10H
₹71.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 1.376nF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 6.134nF
- Pd - Power Dissipation
- 130W
- Reverse Transfer Capacitance (Crss)
- 24pF
- RDS(on)
- 5.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 142nC@15V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.163 g
Overview
The CJAC110SN10H uses shielded gate trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications
Applications
- SMPS and general purpose applications
- Uninterruptible Power Supply
- Hard switched and high frequency circuits
- Power management
Key features
- High Power and current handing capability
- Load switch
- High density cell design for ultra low RDS(ON)
- Lead free product is acquired
