JSCJDatasheet (PDF)

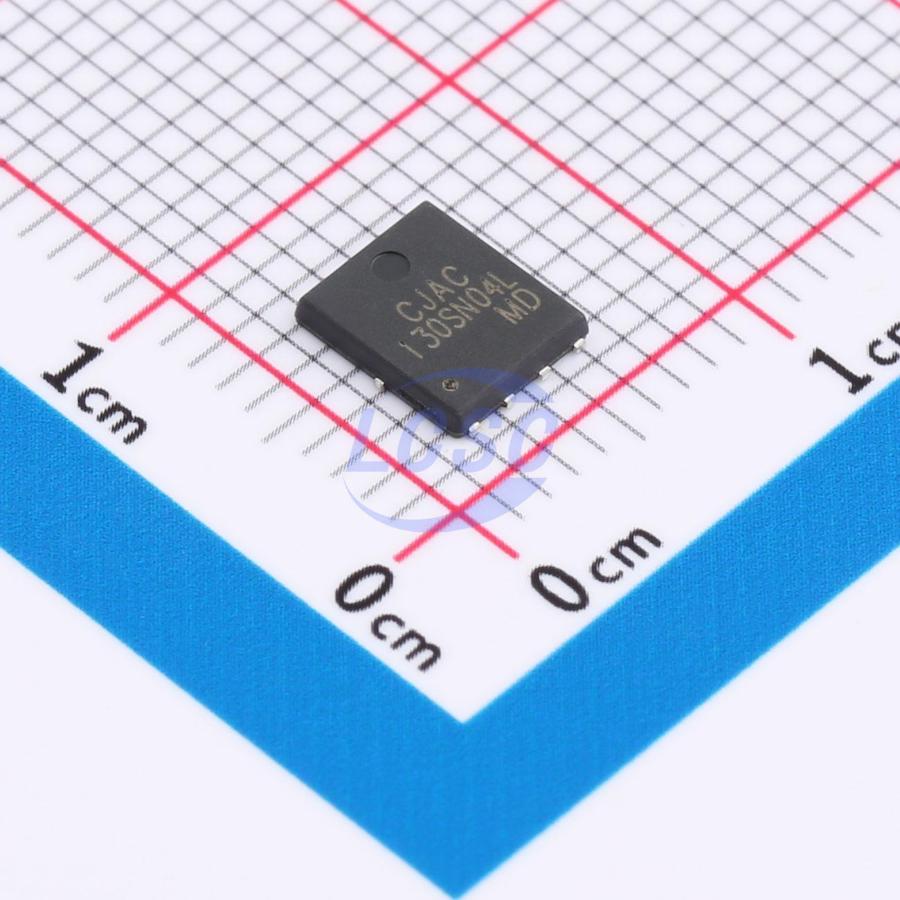

CJAC130SN04L
N-Channel 40V 130A 120W Surface Mount PDFNWB5x6-8L
PDFNWB5x6-8LROHS CompliantActive
MOSFET N-CH 40V 130A PDFNWB5x6-8L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJAC130SN04L
- Store part #
- C5252725
- Package / case
- PDFNWB5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C5252725
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.26 | ₹48.26 |
| 10+ | ₹41.74 | ₹417.40 |
| 30+ | ₹38.91 | ₹1,167.30 |
| 100+ | ₹35.43 | ₹3,543.00 |
| 500+ | ₹33.91 | ₹16,955.00 |
| 1,000+ | ₹33.05 | ₹33,050.00 |
1 × ₹48.26
₹48.26
excl. GST
₹56.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJAC130SN04L
₹48.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 2.62nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Overview
These N-Channel enhancement mode power field effect transistors are using SGT technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching applications.
Applications
- Networking Load Switch
- LED applications
Key features
- Battery switch
- Load switch
- High density cell design for ultra low RDS(ON)
- Good stability and uniformity with high EAS
- Excellent package for good heat dissipation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAC130SN06L#C5441189JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 7,767 | ₹56.77 · 7,767 in stock | View |
 | CJAC2R0SN04C#C19269076JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 3,112 | ₹47.09 · 3,112 in stock | View |
 | CJAC13TH06#C504082JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 50 | ₹118.34 · 50 in stock | View |
 | CJAC200SN04U#C19268993JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 1,273 | ₹111.67 · 1,273 in stock | View |
 | CJAC1R3SN04C#C19269023JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 804 | ₹60.09 · 804 in stock | View |
