JSCJDatasheet (PDF)

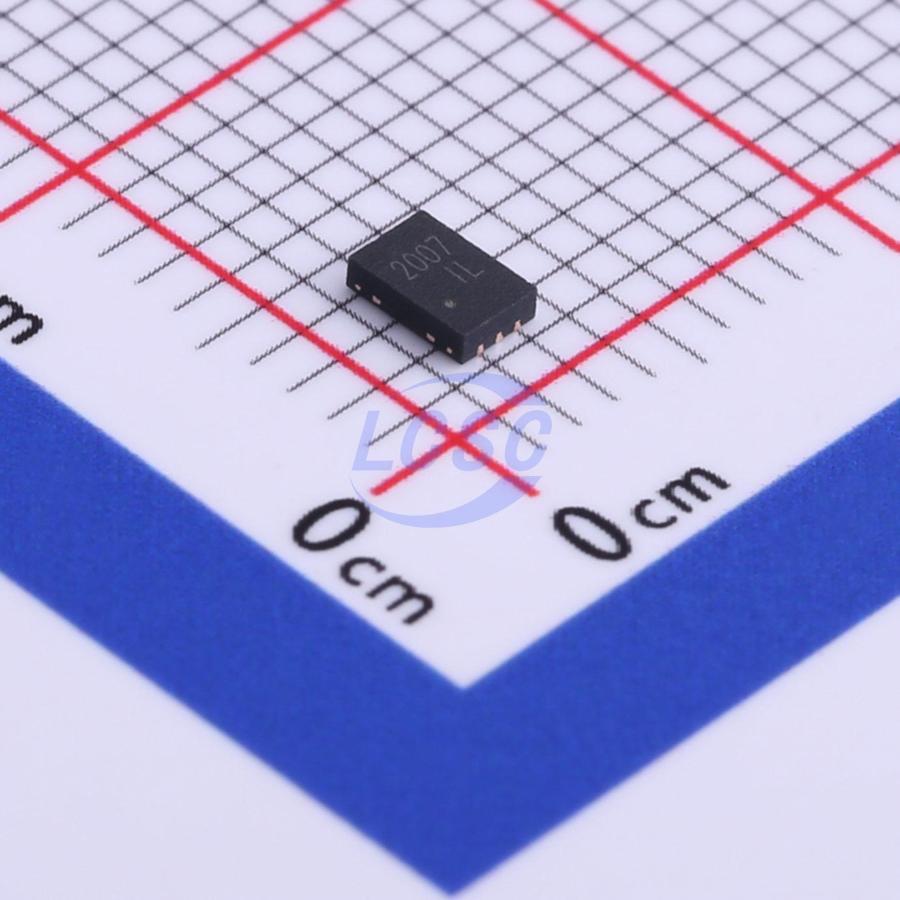

CJCD2007
N-Channel Array 20V 8A DFNWB2x3-6L
DFNWB2x3-6LROHS CompliantActive
MOSFET N-CH ARR 20V 8A DFNWB2x3-6L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJCD2007
- Store part #
- C504183
- Package / case
- DFNWB2x3-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,520 in stock
#C504183
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.42 | ₹92.10 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹12.34 | ₹1,851.00 |
| 500+ | ₹10.82 | ₹5,410.00 |
| 3,000+ | ₹9.60 | ₹28,800.00 |
| 6,000+ | ₹9.00 | ₹54,000.00 |
5 × ₹18.42
₹92.10
excl. GST
₹108.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJCD2007
₹92.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 185pF
- Ciss-Input Capacitance
- 1.15nF
- Configuration
- Common Drain
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 17mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
CJCD2007 utilizes advanced trench technology to deliver excellent RDS(ON) and low gate charge. It features ESD protection and is configured in a common-drain topology, making it suitable for use as a unidirectional or bidirectional load switch.
